Product
Omron
231381
F3S-TGR-NSMC-21-05
Request a Quote
Image copyright: Omron

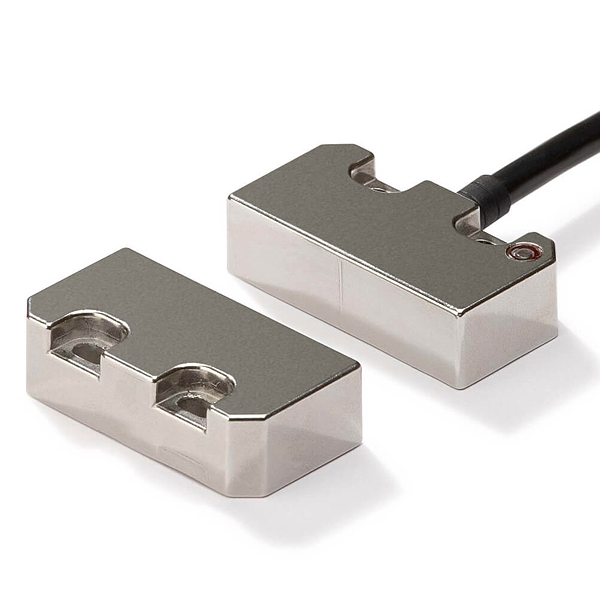

Omron 231381
F3S-TGR-NSMC-21-05
Non-contact door switch, coded, small stainless steel, 2NC+1NO, 5m cable
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Sicherheitstechnik Berührungsloser Sicherheitsschalter, Set Sensor + Betätiger - codierte Version - Edelstahlgehäuse - 2 Öffner + 1 Schließer - Kabellänge 5 m - Schutzklasse IP67 - Zulassungen: UL/CSA, TÜV
Technical parameters
| Door switch type: | Non-contact, Hall coded |
| Guard-lock: | |
| Material housing: | Stainless steel |
| Ambient temperature (operating): | -25-105 °C |
| Door contacts NC: | 2 |
| Door contacts NO: | 1 |
| Connection method: | Cable |
| Cable length: | 5 m |
| Cable exit direction: | Left |
| Degree of protection (IP): | IP69K |
| Shape: | Rectangular compact |
| Overall length: | 50 mm |
| Height of sensor: | 13 mm |
| Width sensor: | 25.5 mm |
Logistic parameters
| ECCN: | |
| Country of Origin: | United Kingdom |
| EAN: | 4536853906382 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
