Product
Omron
159956
61F-GPN-BT 24VDC
Request a Quote
Image copyright: Omron

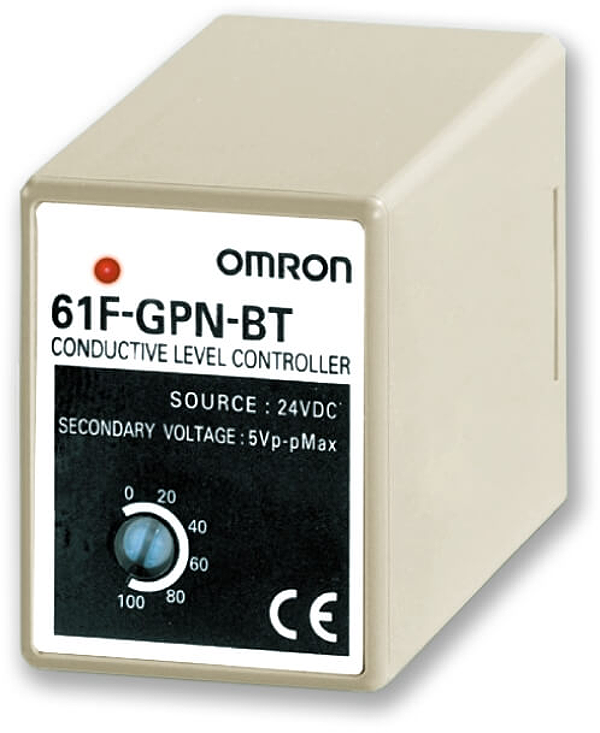

Omron 159956
61F-GPN-BT 24VDC
Level sensor, DC Power supply, conductive, variable sensitivity, plug-in, general-purpose, transistor output, LED indicator (requires PF113A-E socket), 24VDC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Niveauregler - Niveauregler auf Leitfähigkeitsbasis - Versorgung 24DC : Elektrodenspannung 5VAC - Empfindlichkeit einstellbar bis 100kOhm - Ausgang : offner Kollektor(PNP)
Technical parameters
| Application: | Ordinary purified water, Sewage water |
| Functions: | Conductive level control |
| Installation type: | Socket |
| Terminal: | Plug-in |
| Size: | 43 mm |
| Supply voltage DC: | 20.4-26.4 V |
| Output type: | NPN |
| Contact description: | Open collector |
| Body color: | Light grey |
| Number of inputs for electrodes: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Japan |
| EAN: | 4536854728013 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
