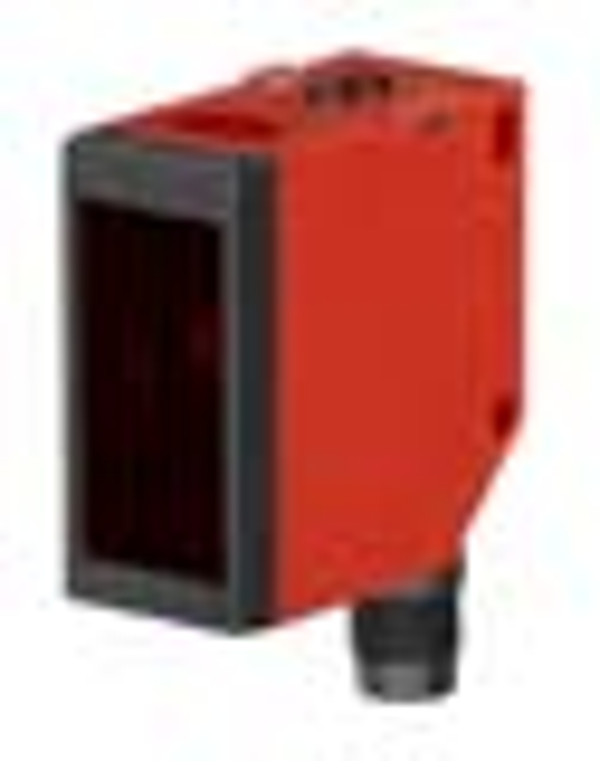

Image copyright: Leuze electronic
Leuze electronic 50138065
ODS110L1.3/LVT-M12
ODS110L1.3/LVT-M12 - Optical distance sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Series: | 110 |
| Application: | Length measurement in material cutting, Collision protection for transport vehicles, Fill-level monitoring |
| Type of scanning system: | Against object |
| Light source: | Laser, Red |
| Laser class: | 1, IEC/EN 60825-1:2007 |
| Light spot size [at sensor distance]: | 5.5 mm x 7 mm [5,000 mm] |
| Measurement range (6 … 90 % diffuse reflection): | 100 ... 3,000 mm |
| Measurement range (90 % diffuse reflection): | 100 ... 5,000 mm |
| Resolution: | 1.0 ... 5.0 mm |
| Reproducibility (1 sigma): | , see diagram |
| Optical distance measurement principle: | Time of flight |
| Linearity error: | 30 mm |
| Supply voltage UB: | 18 ... 30 V, DC |
| Open-circuit current: | 60 mA |
| Number of teach inputs: | 1 Piece(s) |
| Number of analog outputs: | 1 Piece(s) |
| Number of digital switching outputs: | 1 Piece(s) |
| IO-Link note: | Two switching outputs via IO-Link process data (SSC 1 & SSC 2) |
| Type: | Voltage |
| Switching element: | Transistor, Push-pull |
| Type: | IO-Link |
| Specification: | V1.1 |
| Process data, length: | 24 bit |
| Type of connection: | Connector, Turning, 90° |
| Thread size: | M12 |
| Material: | Plastic |
| No. of pins: | 5 -pin |
| Dimension (W x H x L): | 23 mm x 50 mm x 50 mm |
| Housing material: | Plastic, ABS |
| Lens cover material: | Plastic / PMMA |
| Net weight: | 42 g |
| Operational controls: | PC software, Control buttons |
| Ambient temperature, operation: | -40 ... 50 °C |
| Ambient temperature, storage: | -40 ... 80 °C |
| Extraneous light protection, max.: | 5,000 lx |
| Degree of protection: | IP 69K, IP 67 |
| Protection class: | III |
| Certifications: | c UL US |
| Standards applied: | IEC/EN 60947-5-2 |
| Customs tariff number: | 90318080 |
| eCl@ss 8.0: | 27270801 |
| eCl@ss 9.0: | 27270801 |
| ETIM 5.0: | EC001825 |
| ETIM 6.0: | EC001825 |
