Product
IPF
ZI535480
Request a Quote

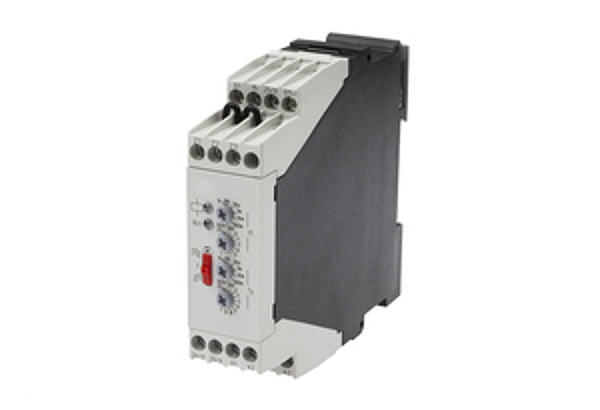

Image copyright: IPF
IPF ZI535480
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Height: | 90mm |
| Housing material: | Plastic |
| Degree of protection (IP): | IP20 |
| Width: | 22.5mm |
| Depth: | 97mm |
| Ambient temperature: | -40 - 60°C |
| Max. tightening torque: | 0.8Nm |
| Voltage type: | AC/DC |
| Number of pins: | 14 |
| Time range: | 0.05 - 1080000s |
| Type of switching output: | Relay contact |
| Rated control supply voltage Us at AC 50HZ: | 12 - 240V |
| Operating voltage: | 12 - 240V |
| Relative repeat accuracy: | 0.5% |
| Number of outputs, undelayed, normally closed contact: | 0 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Number of outputs, delayed, change-over contact: | 2 |
| Readiness delay: | 80ms |
| Number of time ranges: | 8 |
| Type of signal processing: | Time delay relay – pulse/pause |
| Power consumption: | 3VA |
| Number of switching outputs: | 2 |
| Switching voltage: | 250V |
| Type of switching function: | Change-over contact |
| Rated control supply voltage Us at DC: | 12 - 240V |
| Setting procedure: | Manual adjustment |
| Rated switching current: | 3000mA |
| Number of outputs, undelayed, normally open contact: | 0 |
| Number of outputs, delayed, normally open contact: | 0 |
| Voltage type for actuation: | AC/DC |
| Decay time: | 10ms |
| Time adjustable via: | Potentiometer |
| Optional setting via external potentiometer: | True |
| eClass 7.0: | 27371790 |
| eClass 7.1: | 27371790 |
| eClass 8.0: | 27371605 |
| eClass 9.0: | 27371605 |
| eClass 9.1: | 27371605 |
| ETIM-6.0: | EC001439 |
| ETIM-7.0: | EC001439 |
| IPF Product Group: | 600 |
| shipping weight: | 0.2kg |
| packaging dimensions: | 124.0mm x 28.0mm x 149.0mm |
| customs tariff number: | 85364900 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
