Product
IPF
YT353120
Request a Quote
Image copyright: IPF

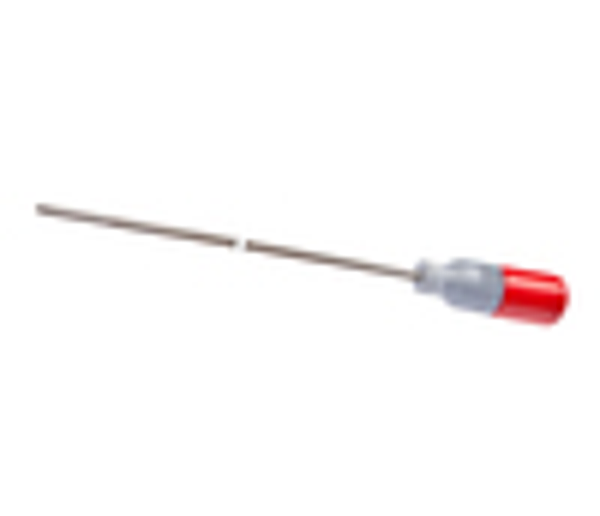

IPF YT353120
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Mounting method: | Mounting clip |
| Height: | 118mm |
| Housing material: | PA 6.6 (synthetic) |
| Degree of protection (IP), front side: | IP65 |
| Width: | 40mm |
| Length: | 40mm |
| Ambient temperature: | -20 - 80°C |
| Degree of protection (IP): | IP65 |
| Voltage type: | DC |
| Turn-off delay: | 20s |
| Number of switching outputs: | 2 |
| Analog output, current: | yes |
| Switching frequency: | 0.12kHz |
| Type of electrical connection: | Connector M12 |
| Type of switching function: | Normally closed contact/normally open contact |
| Setting procedure: | Parameterization |
| Relative linearity deviation: | 0.25% |
| Max. continuous current: | 1A |
| Short-circuit protection: | yes |
| Initial value of measuring range, current: | 0A |
| Reverse polarity protection: | yes |
| Display range: | -40 - 300°C |
| Type of analog input: | PT100 |
| Turn-on delay: | 20s |
| Display: | LED |
| Measuring range: | -40 - 300°C |
| Analog output, voltage: | yes |
| Type of analog output: | 0 V ... 10 V / 4 mA ... 20 mA |
| Type of switching output: | PNP |
| Rated control supply voltage Us at DC: | 12 - 32V |
| No-load current: | 60mA |
| Relative measurement accuracy: | 0.1% |
| Rated switching current: | 1000mA |
| Temperature drift: | 0.02%/K |
| End value measuring range, current: | 0.02A |
| Number of decades: | 4 |
| Characteristic curve deviation: | 0.25% |
| eClass 7.0: | 27210123 |
| eClass 7.1: | 27210123 |
| eClass 8.0: | 27210123 |
| eClass 9.0: | 27210123 |
| eClass 9.1: | 27210123 |
| ETIM-6.0: | EC002475 |
| ETIM-7.0: | EC002475 |
| IPF Product Group: | 310 |
| shipping weight: | 0.34kg |
| packaging dimensions: | 99.0mm x 60mm x 160mm |
| customs tariff number: | 85437090 |
