Product
IPF
YM220100
Request a Quote
Image copyright: IPF

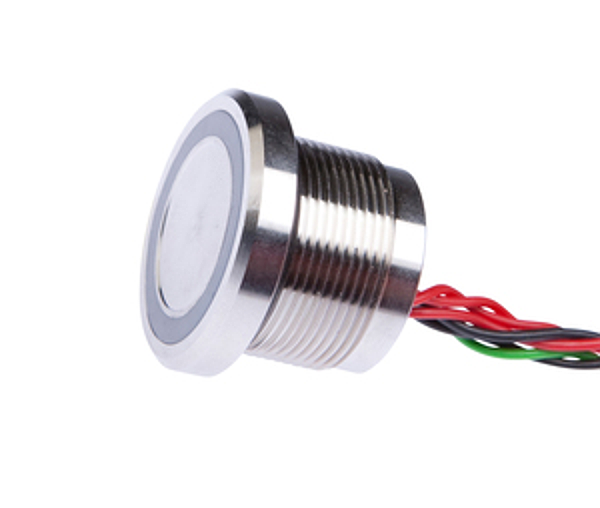

IPF YM220100
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Hole diameter: | 22.5mm |
| Cable length: | 500mm |
| Length: | 20mm |
| Housing material: | Stainless steel 1.4404 |
| Front ring color: | Chrome |
| Thread pitch: | 1mm |
| Front ring material: | Metal |
| Actuation force: | 2 - 6N |
| Thread length: | 12mm |
| Design: | Cylinder, screw-thread |
| Button design: | Flat |
| Ambient temperature: | -40 - 75°C |
| Thread size, metric: | 22 |
| Degree of protection (IP): | IP68 |
| Lens design: | Round |
| Max. tightening torque: | 1Nm |
| Voltage type: | AC/DC |
| Number of pins: | 6 |
| Type of electrical connection: | Single cores |
| Type of switching function: | Normally open contact |
| No-load current: | 20mA |
| Rated switching current: | 200mA |
| Switching function, latching: | no |
| Reverse polarity protection: | yes |
| Suitable for illumination: | yes |
| Scanning: | yes |
| Type of switching output: | Relay contact |
| Rated control supply voltage Us at DC: | 24 - 24V |
| Supply voltage of lamp: | 24V |
| Short-circuit protection: | yes |
| Number of contacts as normally open contact: | 1 |
| Voltage drop: | 2.5V |
| With front ring: | yes |
| eClass 7.0: | 27371228 |
| eClass 7.1: | 27371228 |
| eClass 8.0: | 27371228 |
| eClass 9.0: | 27371228 |
| eClass 9.1: | 27371228 |
| ETIM-6.0: | EC001028 |
| ETIM-7.0: | EC001028 |
| IPF Product Group: | 690 |
| shipping weight: | 0.06kg |
| packaging dimensions: | 43.0mm x 43.0mm x 105.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
