Product
IPF
WD720900
Request a Quote
Image copyright: IPF

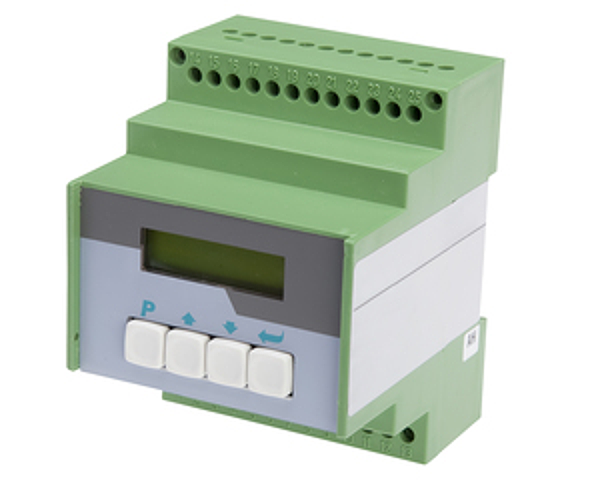

IPF WD720900
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Width: | 72mm |
| Depth: | 76mm |
| Housing material: | Plastic |
| Storage temperature: | -25 - 70°C |
| Height: | 91mm |
| Length: | 76mm |
| Degree of protection (IP): | IP20 |
| Number of outputs: | 3 |
| Switching capacity: | 60VA |
| Type of analog output: | 0 V ... 10 V / 4 mA ... 20 mA / 0 … 20 mA |
| Type of switching function: | Change-over contact |
| Setting procedure: | Parameterization |
| Input voltage at DC: | 10 - 30V |
| Voltage type for actuation: | DC |
| Start-up delay time: | 1 - 128s |
| Minimum pulse length: | 0ms |
| Max. input frequency for asymmetric pulses, TTL level: | 350kHz |
| Power consumption: | 70VA |
| Switching voltage: | 230V |
| Type of switching output: | Relay contact |
| Rated control supply voltage Us at DC: | 17 - 30V |
| Rated switching current: | 2000mA |
| Operating frequency: | 0.1 - 1000000Hz |
| Transducer power supply current: | 200mA |
| Type of transducer power supply voltage: | DC |
| Max. input frequency for symmetric pulses in RS422: | 1000kHz |
| With display: | yes |
| With transducer power supply: | yes |
| Multifunctional device: | yes |
| With start-up delay: | yes |
| With LCD display: | yes |
| eClass 7.0: | 27371811 |
| eClass 7.1: | 27371811 |
| eClass 8.0: | 27371811 |
| eClass 9.0: | 27371811 |
| eClass 9.1: | 27371811 |
| ETIM-6.0: | EC001448 |
| ETIM-7.0: | EC001448 |
| IPF Product Group: | 650 |
| shipping weight: | 0.42kg |
| packaging dimensions: | 190mm x 105.0mm x 200mm |
| customs tariff number: | 90292038 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
