Product
IPF
WD534400
Request a Quote
Image copyright: IPF

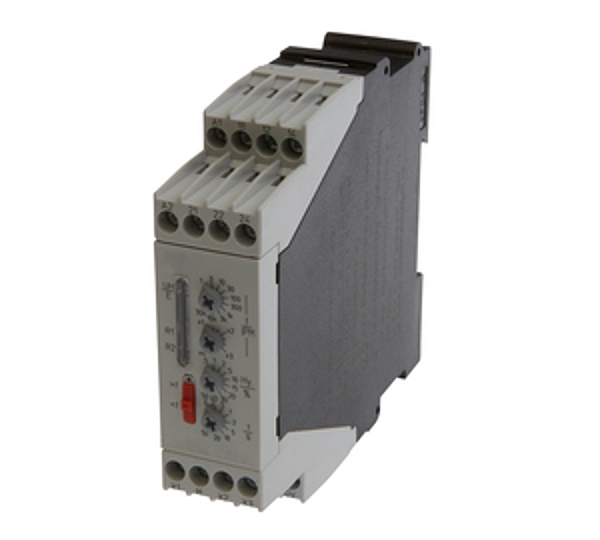

IPF WD534400
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Height: | 90mm |
| Housing material: | Plastic |
| Degree of protection (IP): | IP20 |
| Width: | 22.5mm |
| Depth: | 97mm |
| Ambient temperature: | -20 - 60°C |
| Storage temperature: | -20 - 60°C |
| Number of outputs: | 2 |
| Adjustment range: | 120000 - 1mm |
| Switching voltage: | 230V |
| Type of switching function: | Change-over contact |
| Rated control supply voltage Us at DC: | 24 - 24V |
| Rated switching current: | 3000mA |
| Input voltage at DC: | 20.4 - 28.8V |
| Voltage type for actuation: | DC |
| Transducer power supply voltage: | 24V |
| Start-up delay time: | 1 - 50s |
| Minimum pulse length: | 0.02ms |
| Power consumption: | 4VA |
| Number of outputs, signaling function, undelayed, with contact: | 2 |
| Type of switching output: | Relay contact |
| Rated control supply voltage Us at AC 50HZ: | 230 - 230V |
| Setting procedure: | Parameterization |
| Input voltage at AC 50 Hz: | 184 - 253V |
| Measuring range rotational speed: | 1 - 1200001/min |
| Readiness delay: | 400ms |
| Transducer power supply current: | 20mA |
| Type of transducer power supply voltage: | DC |
| SIL in acc. with IEC 61508: | 0 |
| With start-up delay: | yes |
| With transducer power supply: | yes |
| Multifunctional device: | yes |
| eClass 7.0: | 27371811 |
| eClass 7.1: | 27371811 |
| eClass 8.0: | 27371811 |
| eClass 9.0: | 27371811 |
| eClass 9.1: | 27371811 |
| ETIM-6.0: | EC001448 |
| ETIM-7.0: | EC001448 |
| IPF Product Group: | 650 |
| shipping weight: | 0.27kg |
| packaging dimensions: | 145.0mm x 45.0mm x 170mm |
| customs tariff number: | 90292038 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
