Product
IPF
VYR90270
Request a Quote
Image copyright: IPF

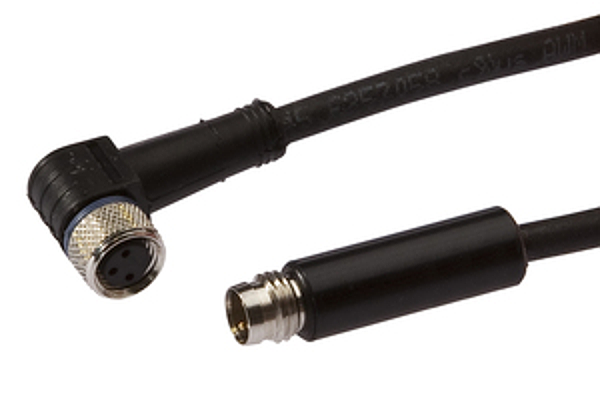

IPF VYR90270
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Mounting method: | Direct mounting |
| Diameter: | 9mm |
| Housing material: | Aluminum |
| Degree of protection (IP): | IP67 |
| Cable infeed of B connection: | Straight |
| Cable length: | 0.3m |
| Length: | 32.5mm |
| Ambient temperature: | -10 - 60°C |
| Cable infeed of A connection: | Angular |
| Voltage type: | DC |
| Switching frequency: | 5000Hz |
| Rated control supply voltage Us at DC: | 10 - 35V |
| Rated switching current: | 300mA |
| Number of outputs, undelayed, normally open contact: | 0 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Number of outputs, delayed, change-over contact: | 0 |
| Reverse polarity protection: | yes |
| Number of pins of the connector: | 3 |
| Type of output signal: | EV000510 |
| Type of A electrical connection: | EV008314 |
| Type of plug-in contact, A connection: | Female (socket) |
| Number of switching outputs: | 1 |
| Type of switching function: | Normally closed contact |
| Operating voltage: | 10 - 35V |
| Number of outputs, undelayed, normally closed contact: | 1 |
| Number of outputs, undelayed, change-over contact: | 0 |
| Number of outputs, delayed, normally open contact: | 0 |
| Short-circuit protection: | yes |
| Number of pins of the coupling: | 3 |
| Type of input signal: | pnp |
| Type of signal processing: | Signal inversion |
| Type of B electrical connection: | M8 |
| Type of plug-in contact, B connection: | Male (plug) |
| eClass 7.0: | 27371790 |
| eClass 7.1: | 27371790 |
| eClass 8.0: | 27371605 |
| eClass 9.0: | 27371605 |
| eClass 9.1: | 27371605 |
| ETIM-6.0: | EC001439 |
| ETIM-7.0: | EC001439 |
| IPF Product Group: | 800 |
| shipping weight: | 0.02kg |
| packaging dimensions: | 100mm x 17.0mm x 120mm |
| customs tariff number: | 85365005 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
