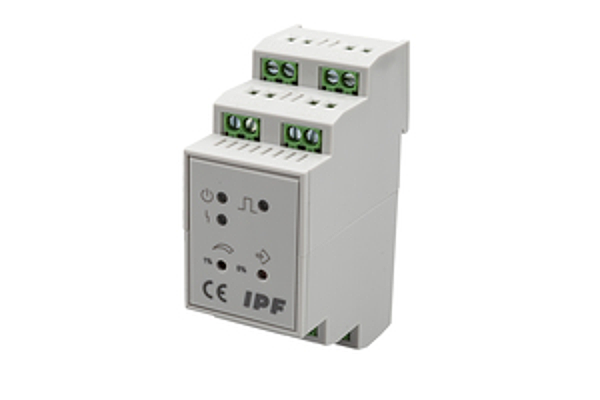

IPF VY860800
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Height: | 65mm |
| Length: | 85mm |
| Ambient temperature: | -25 - 75°C |
| Width: | 35.6mm |
| Depth: | 58mm |
| Housing material: | Plastic PC |
| Degree of protection (IP): | IP20 |
| Number of outputs: | 1 |
| Switching voltage: | 250V |
| Type of switching function: | Normally closed contact |
| Setting procedure: | Teach-In |
| Operating frequency: | 10 - 800Hz |
| Reverse polarity protection: | yes |
| Max. input frequency for reset: | 3kHz |
| Power consumption: | 15VA |
| Type of switching output: | Relay contact |
| Rated control supply voltage Us at DC: | 24 - 24V |
| Rated switching current: | 1500mA |
| Evaluation of inputs: | Dual channel |
| Minimum pulse length: | 1.25ms |
| With current transformer: | no |
| With start-up delay: | yes |
| eClass 7.0: | 27230220 |
| eClass 7.1: | 27230220 |
| eClass 8.0: | 27230220 |
| eClass 9.0: | 27230220 |
| eClass 9.1: | 27230220 |
| ETIM-6.0: | EC001448 |
| ETIM-7.0: | EC001448 |
| IPF Product Group: | 800 |
| shipping weight: | 0.13kg |
| packaging dimensions: | 76.0mm x 50mm x 121.0mm |
| customs tariff number: | 85365005 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
