Product
IPF
VY850001
Request a Quote
Image copyright: IPF

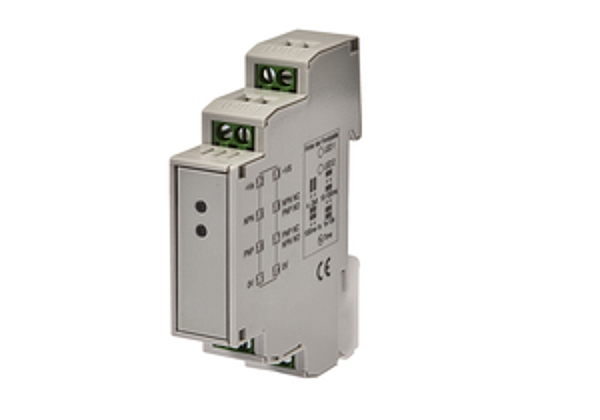

IPF VY850001
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Height: | 85mm |
| Housing material: | Plastic |
| Degree of protection (IP): | IP40 |
| Width: | 17.5mm |
| Length: | 65mm |
| Ambient temperature: | -10 - 60°C |
| Voltage type: | DC |
| Number of switching outputs: | 1 |
| Switching voltage: | 30V |
| Type of electrical connection: | Clamps |
| Rated control supply voltage Us at DC: | 12 - 30V |
| Setting procedure: | Manual adjustment |
| Number of outputs, undelayed, normally closed contact: | 1 |
| Number of outputs, undelayed, change-over contact: | 0 |
| Number of outputs, delayed, normally open contact: | 1 |
| Short-circuit protection: | yes |
| Type of signal input A: | PNP/NPN |
| Type of signal output: | PNP/NPN |
| Type of output signal: | PNP/NPN |
| Number of pins: | 8 |
| Time range: | 0.01 - 10s |
| Switching frequency: | 20000Hz |
| Type of switching function: | Normally closed contact/normally open contact |
| Operating voltage: | 12 - 30V |
| Rated switching current: | 300mA |
| Number of outputs, undelayed, normally open contact: | 1 |
| Number of outputs, delayed, normally closed contact: | 1 |
| Number of outputs, delayed, change-over contact: | 0 |
| Reverse polarity protection: | yes |
| Number of time ranges: | 3 |
| Type of input signal: | PNP/NPN |
| Type of signal processing: | Inverter/signal-inversion/turn-off delay |
| eClass 7.0: | 27371790 |
| eClass 7.1: | 27371790 |
| eClass 8.0: | 27371605 |
| eClass 9.0: | 27371605 |
| eClass 9.1: | 27371605 |
| ETIM-6.0: | EC001439 |
| ETIM-7.0: | EC001439 |
| IPF Product Group: | 800 |
| shipping weight: | 0.07kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85365005 |
