Product
IPF
VY200120
Request a Quote
Image copyright: IPF

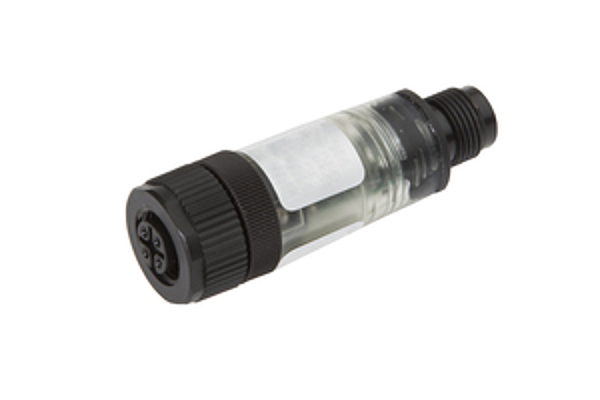

IPF VY200120
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Mounting method: | Direct mounting |
| Length: | 60mm |
| Degree of protection (IP): | IP67 |
| Diameter: | 20mm |
| Housing material: | Plastic |
| Cable infeed of A connection: | Straight |
| Voltage type: | DC |
| Number of switching outputs: | 1 |
| Type of switching function: | Normally open contact |
| Operating voltage: | 10 - 30V |
| Rated switching current: | 400mA |
| Number of outputs, undelayed, normally open contact: | 0 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Number of outputs, delayed, change-over contact: | 0 |
| Response time: | 0.1ms |
| Number of time ranges: | 1 |
| Number of pins of the coupling: | 4 |
| Time adjustable via: | Teach-In |
| Type of output signal: | EV000510 |
| Type of A electrical connection: | M12 |
| Type of plug-in contact, A connection: | Female (socket) |
| Number of pins: | 4 |
| Switching voltage: | 30V |
| Rated control supply voltage Us at DC: | 10 - 30V |
| Setting procedure: | Manual adjustment |
| Number of outputs, undelayed, normally closed contact: | 0 |
| Number of outputs, undelayed, change-over contact: | 0 |
| Number of outputs, delayed, normally open contact: | 1 |
| Short-circuit protection: | yes |
| Type of signal input A: | PNP |
| Type of signal output: | PNP |
| Number of pins of the connector: | 4 |
| Type of input signal: | pnp |
| Type of signal processing: | Turn-on/turn-off delayed |
| Type of B electrical connection: | M12 |
| Type of plug-in contact, B connection: | Male (plug) |
| eClass 7.0: | 27371790 |
| eClass 7.1: | 27371790 |
| eClass 8.0: | 27371605 |
| eClass 9.0: | 27371605 |
| eClass 9.1: | 27371605 |
| ETIM-6.0: | EC001439 |
| ETIM-7.0: | EC001439 |
| IPF Product Group: | 800 |
| shipping weight: | 0.03kg |
| packaging dimensions: | 60mm x 30mm x 91.0mm |
| customs tariff number: | 85365005 |
