IPF
VR100014

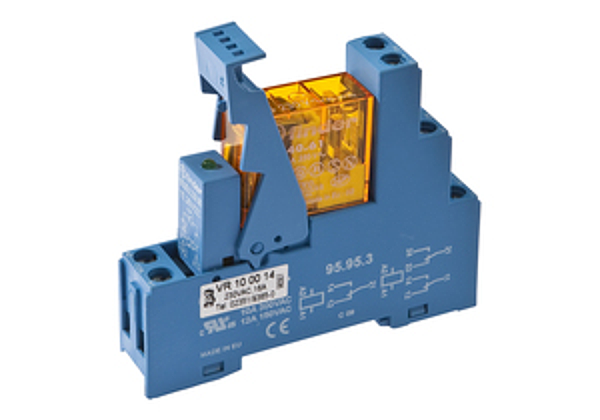

IPF VR100014
Relais kompl,230VAC,16A 1Wechsler Fassung,Haltebügel,LedAnz,BezSchild
Description
Time stages, relays and signal converters. Our multi-function time relays / pulse stretchers can be considered as real alternatives when it comes to solutions for minor set control technology problems. The input signals, for example, can be switch-on or off delayed after a preset time. In order to be able to reduce the storage, multi-function relays can be used that provide, in addition to the already mentioned functions, operating modes like time-programming, pulse-forming or clocking. Besides, there is also star / delta change-over for load-contactors integrated in the motor start control. Reversing the switching logic or the polarity is possible with our fast signal inverters / impulse stretchers. These are characterized by extremely short response times and high switching frequencies. As an input circuit for a PLC these devices are perfect to record short signal or level changes.
Technical parameters
| Width: | 15.4mm |
| Design: | Cuboid |
| Housing material: | Plastic |
| Contact coating material: | Cadmium-oxygen |
| Contact material: | Silver |
| Height: | 78.6mm |
| Length: | 75mm |
| Ambient temperature: | -40 - 70°C |
| Degree of protection (IP): | IP40 |
| with retaining bracket: | yes |
| Switching capacity: | 4000VA |
| Switching frequency: | 40Hz |
| Rated control supply voltage Us at AC 50HZ: | 230 - 230V |
| Nominal measuring voltage: | 6000V |
| Connection type auxiliary circuit: | Screw connection |
| Decay time: | 15ms |
| Number of operating cycles: | 10000000 |
| Number of auxiliary contacts as change-over contact: | 1 |
| Type of switching output: | Relay contact |
| Switching voltage: | 5 - 400V |
| Rated switching current: | 16A |
| Response time: | 10ms |
| Operating range of the coil: | AC: 0.8 - 1.1 nominal voltage |
| eClass 7.0: | 27371001 |
| eClass 7.1: | 27371001 |
| eClass 8.0: | 27371001 |
| eClass 9.0: | 27371001 |
| eClass 9.1: | 27371001 |
| ETIM-6.0: | EC000196 |
| ETIM-7.0: | EC000196 |
| IPF Product Group: | 800 |
| shipping weight: | 0.07kg |
| packaging dimensions: | 100mm x 16.0mm x 175.0mm |
| customs tariff number: | 85364900 |
