IPF
VL250100
Request a Quote
Image copyright: IPF

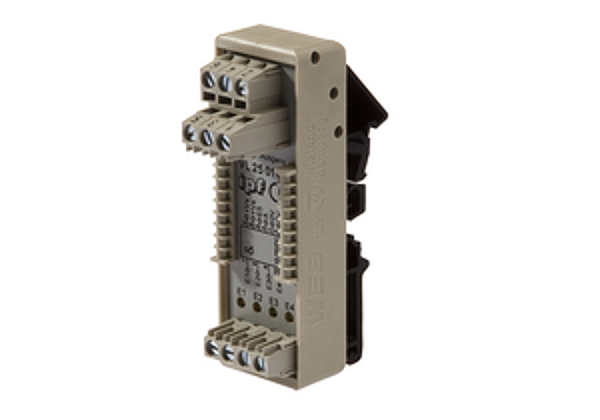

IPF VL250100
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Width: | 25.5mm |
| Depth: | 49mm |
| Housing material: | Plastic |
| Degree of protection (IP): | IP40 |
| Height: | 80mm |
| Expandable: | no |
| Ambient temperature: | -25 - 60°C |
| Voltage type of supply voltage: | DC |
| No-load current: | 5mA |
| Supply voltage at DC: | 10 - 35V |
| Logic: | AND |
| Number of inputs per logic unit: | 4 |
| Type of electrical connection, sensor side: | Clamps |
| Number of pins of connections, sensor side: | 10 |
| Number of sensor connection positions: | 4 |
| Switching frequency: | 5000Hz |
| Rated switching current: | 300mA |
| Voltage drop: | 2.1V |
| Number of logic units: | 1 |
| IO-Link compatible: | no |
| Type of electrical connection, control side: | Clamps |
| Number of pins of connections, control side: | 10 |
| eClass 7.0: | 27242216 |
| eClass 7.1: | 27242216 |
| eClass 8.0: | 27242216 |
| eClass 9.0: | 27242216 |
| eClass 9.1: | 27242216 |
| ETIM-6.0: | EC001417 |
| ETIM-7.0: | EC001417 |
| IPF Product Group: | 800 |
| shipping weight: | 0.06kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85365005 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
