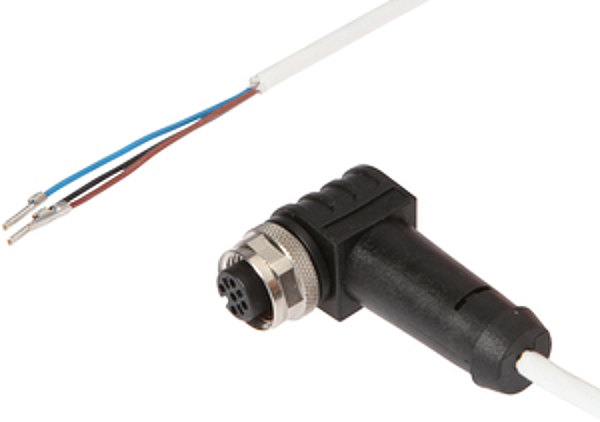

Article image VKC0H021

IPF VKC0H021

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Technical parameters

Version: EV009612
Cable length: 30.00m
Number of cores: 3
Degree of protection (IP): IP65
Seawater-resistant: yes
Wire cross section: 0.34mm²
Perm. ambient temperature of cable, fixed cable: -20 - 150°C
Material of cable sheath: PTFE
Contact body material: Brass
Cable infeed of A connection: Angular
Rated current: 4A
Flow resistance: 5mOhm
Type of A electrical connection: M12
Type of plug-in contact, A connection: Female (socket)
Rated voltage: 250V
Number of pins of A connection: 3
Type of B electrical connection: Free conductor end
Flame retardant: No
Suitable for trailing chain and torsion resistant: no
IR-networked: no
eClass 7.0: 27279218
eClass 7.1: 27279218
eClass 8.0: 27279218
eClass 9.0: 27060311
eClass 9.1: 27060311
ETIM-6.0: EC001855
ETIM-7.0: EC001855
IPF Product Group: 853
shipping weight: 0.34kg
packaging dimensions: 220mm x 20mm x 220mm
customs tariff number: 85444290

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
