IPF
VK50A344
IPF VK50A344

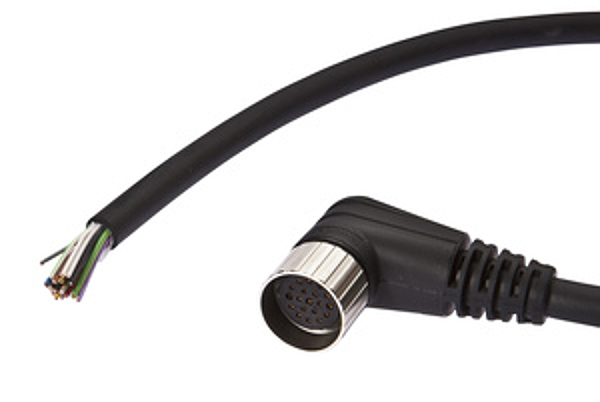

5.00m, M23 Female (socket) 19pin Angular, Free conductor end, 19wire, PUR (Polyurethane), 125V
Description
Grp-kabeldosen, ipf cable sockets are used primarily for establishing the electrical connection of sensors. Their features are characterized by rugged design, the highest protection classes (IP67 | IP68 | IP69K) and, if desired, with 360° shielding. With the features: bus-ready, suitable for use with drag chains and robots, resistance to oil and chemicals, resistance to welding sparks, their resistance to cleaning agents or high-pressure and steam-jet cleaning, the expanded temperature range of up to +230°C, the rapid interconnection technology and special data transmission properties, the cable sockets meet all requirements in automation technology.
Technical parameters
| Version: | EV009612 |
| Perm. ambient temperature of cable, fixed cable: | -25 - 80°C |
| Material of cable sheath: | PUR (Polyurethane) |
| Contact body material: | Brass |
| Cable length: | 5.00m |
| Number of cores: | 19 |
| Suitable for trailing chain: | yes |
| Cable infeed of A connection: | Angular |
| Rated voltage: | 125V |
| Type of A electrical connection: | M23 |
| Type of plug-in contact, A connection: | Female (socket) |
| Number of pins of A connection: | 19 |
| Type of B electrical connection: | Free conductor end |
| IR-networked: | no |
| eClass 7.0: | 27279218 |
| eClass 7.1: | 27279218 |
| eClass 8.0: | 27279218 |
| eClass 9.0: | 27060311 |
| eClass 9.1: | 27060311 |
| ETIM-6.0: | EC001855 |
| ETIM-7.0: | EC001855 |
| IPF Product Group: | 700 |
| shipping weight: | 1.01kg |
| packaging dimensions: | 230mm x 55.0mm x 230mm |
| customs tariff number: | 85444290 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
