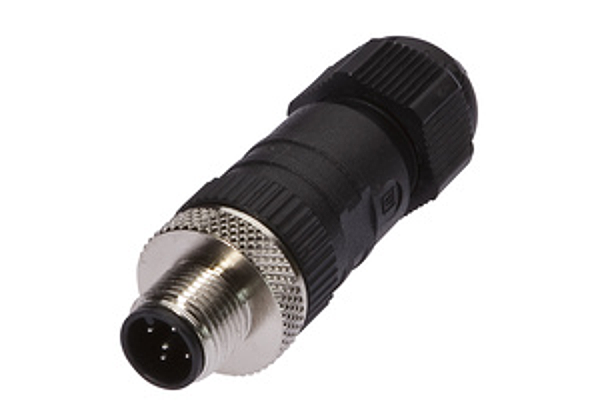

Article image VK003C29

IPF VK003C29

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Technical parameters

Version: IV001665
Housing material: PBT
Contact coating material: Gold
Contact body material: Brass
Wire cross section: 0.75mm²
Perm. ambient temperature of cable, fixed cable: -25 - 90°C
Degree of protection (IP): IP67
Cable infeed of A connection: Straight
Rated current: 4A
Shielded: no
Number of pins of B connection: 5
Type of B electrical connection: Screw connection
Rated voltage: 60V
Number of pins of A connection: 5
Type of A electrical connection: M12
Type of plug-in contact, A connection: Male (plug)
Halogen-free: no
IR-networked: no
Flame retardant: No
eClass 7.0: 27279218
eClass 7.1: 27279218
eClass 8.0: 27279218
eClass 9.0: 27060311
eClass 9.1: 27060311
ETIM-6.0: EC001855
ETIM-7.0: EC001855
IPF Product Group: 852
shipping weight: 0.03kg
packaging dimensions: 100mm x 15.0mm x 120mm
customs tariff number: 85369010

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
