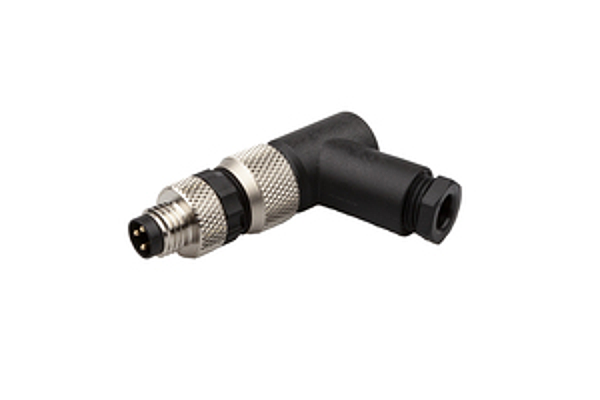

Article image VK003176

IPF VK003176

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Technical parameters

Version: IV001665
Housing material: PA
Contact coating material: Gold
Suitable for trailing chain: yes
Cable infeed of A connection: Angular
Wire cross section: 0.5mm²
Ambient temperature: -40 - 85°C
Degree of protection (IP): IP67
Contact body material: CuSn
Nominal supply voltage: 60V
Rated voltage: 60V
Line diameter: 5mm
Number of pins of B connection: 3
Type of B electrical connection: Screw connection
Rated current: 4A
Ampacity: 4A
Number of pins of A connection: 3
Type of A electrical connection: M8
Type of plug-in contact, A connection: Male (plug)
Degree of soiling: 3
eClass 7.0: 27279218
eClass 7.1: 27279218
eClass 8.0: 27279218
eClass 9.0: 27060311
eClass 9.1: 27060311
ETIM-6.0: EC001855
ETIM-7.0: EC001855
IPF Product Group: 852
shipping weight: 0.01kg
packaging dimensions: 100mm x 13.0mm x 120mm
customs tariff number: 85369010

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
