Product
IPF
VK001047
Request a Quote
Image copyright: IPF

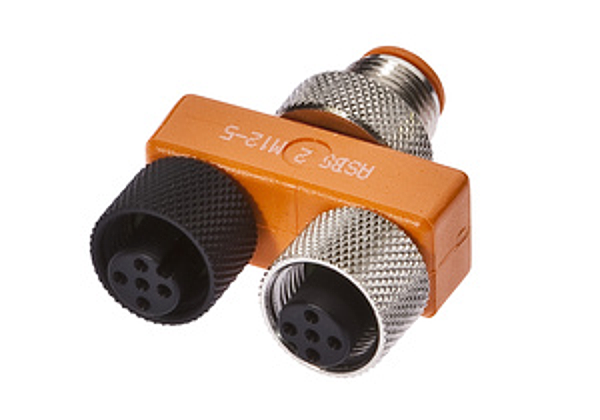

IPF VK001047
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Housing material: | Plastic |
| Angle of the slots: | 45° |
| Degree of protection (IP): | IP67 |
| Voltage type: | AC/DC |
| Rated switching current: | 4000mA |
| Number of sensor/actuator slots: | 2 |
| Cable length, configurable: | no |
| Type of plug connector for trunk line: | M12 |
| Number of pins: | 5 |
| Connection for NPN sensors: | no |
| Type of branches for sensor/actuator cables: | M12 |
| Number of pins of sensor/actuator slots: | 5 |
| Operating temperature: | -25 - 90°C |
| Features: | IV002087 |
| eClass 7.0: | 27279219 |
| eClass 7.1: | 27279219 |
| eClass 8.0: | 27279219 |
| eClass 9.0: | 27440108 |
| eClass 9.1: | 27440108 |
| ETIM-6.0: | EC002585 |
| ETIM-7.0: | EC002585 |
| IPF Product Group: | 855 |
| shipping weight: | 0.04kg |
| packaging dimensions: | 120mm x 10mm x 195.0mm |
| customs tariff number: | 85366990 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
