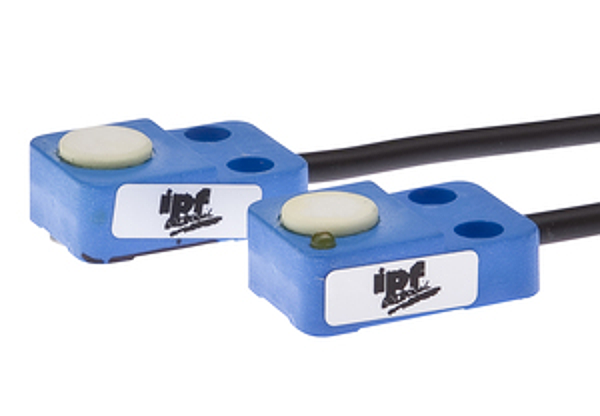

UY210200
Sensor ultrasonic, Through-beam sensors, 30x12x20mm, Sn: 300, 18-30V DC, PNP NC (NC), Cable, IP67, Plastic, With LED display
Ultrasonic sensors are non-contact and wear-free position switches which can also be used under rough environmental conditions. A key advantage of these devices lies in the fact that the material and the surface characteristics of the objects to be detected can be almost anything. Solids, liquids, grainy materials and powdery materials can be identified without the shape or the color of the object having any influence to the measured result. In addition, the ability to detect transparent materials such as films and fluids is of particular importance. The shape and color of the objects do not influence the result of the detection. The capability to detect transparent films or liquids is also of special importance. Ultrasonic sensors are used for distance measurement (e.g. detection of diameters, loop control), for fill level detection (e.g. silo detection), for positioning and presence detection (e.g. glass pane positioning, film tear check, glass bottle detection)
Design: | Cuboid |
Ambient temperature: | -15 - 60°C |
Sensor width: | 20mm |
Sensor length: | 12mm |
Housing material: | Plastic |
Degree of protection (IP): | IP67 |
Sensor height: | 30mm |
Voltage type: | DC |
Type of electrical connection: | Cable |
Type of switching function: | Normally closed contact (NC) |
Supply voltage: | 18 - 30V |
Short-circuit protection: | yes |
Response time: | 1ms |
Carrier frequency: | 300kHz |
Switching frequency: | 150Hz |
Type of switching output: | PNP |
No-load current: | 40mA |
Rated switching current: | 500mA |
Measuring range length: | 300 - 300mm |
Response/decay time: | 1ms |
Sound outlet: | Lateral |
Version: | Through-beam sensors |
eClass 7.0: | 27272801 |
eClass 7.1: | 27272801 |
eClass 8.0: | 27272801 |
eClass 9.0: | 27272801 |
eClass 9.1: | 27272801 |
ETIM-6.0: | EC001847 |
ETIM-7.0: | EC001847 |
IPF Product Group: | 250 |
shipping weight: | 0.15kg |
packaging dimensions: | 105.0mm x 55.0mm x 170mm |
customs tariff number: | 85365019 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
