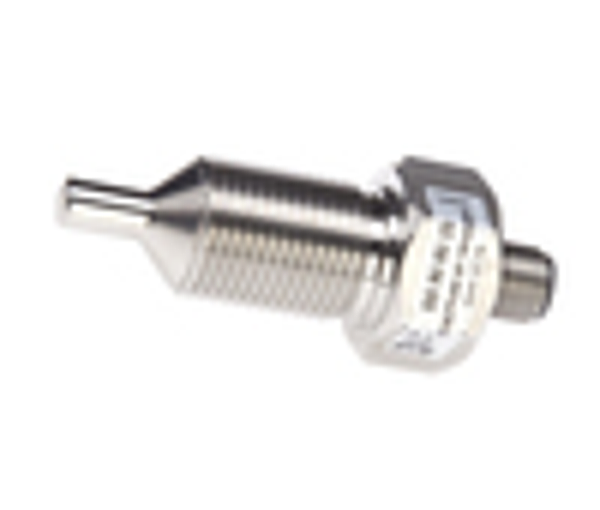

IPF SV990969
Sensor ström,verstärker 55x75x110 230V AC,Relais,ATEX
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The function of the flow sensor is based on the calorimetric principle. The probe is heated up from the inside a few degrees Celsius in relation to the flow medium, in which it protrudes. When the medium flows, the heat generated in the probe is dissipated through the medium. The temperature within the sensor is measured and compared with the likewise measured medium temperature. From the obtained temperature difference the flow state of each medium can be derived. These sensors are applied in areas such as monitoring of cooling systems, ventilation systems, pump dry running by checking the presence of liquid or gas flows.
Technical parameters
| Mounting method: | Snap mounting mounting rail |
| Height: | 110mm |
| Design: | Cuboid |
| Housing material: | Plastic |
| Device design: | Built-in device |
| Width: | 55mm |
| Depth: | 110mm |
| Length: | 75mm |
| Degree of protection (IP): | IP20 |
| Voltage type: | AC |
| Type of voltage supply: | Active |
| Type of electrical connection: | Clamps |
| Output circuit, relay change-over contact: | 1 |
| Input voltage tolerance: | 10% |
| Line monitoring: | yes |
| Switching voltage DC: | 60V |
| Max. outer inductivity: | 0.5mH |
| Number of channels: | 1 |
| Switching voltage: | 250V |
| Type of switching function: | Change-over contact (NO/NC) |
| Rated supply voltage at AC: | 230 - 230V |
| Malfunction message output: | no |
| No-load current: | 200mA |
| Switching voltage AC: | 250 |
| Max. outer capacity: | 0.17µF |
| Operating temperature: | -20 - 60°C |
| eClass 7.0: | 27210121 |
| eClass 7.1: | 27210121 |
| eClass 8.0: | 27210121 |
| eClass 9.0: | 27210121 |
| eClass 9.1: | 27210121 |
| ETIM-6.0: | EC001485 |
| ETIM-7.0: | EC001485 |
| IPF Product Group: | 700 |
| shipping weight: | 0.42kg |
| packaging dimensions: | 74.0mm x 74.0mm x 143.0mm |
| customs tariff number: | 85365019 |
