IPF
SS906082
IPF SS906082

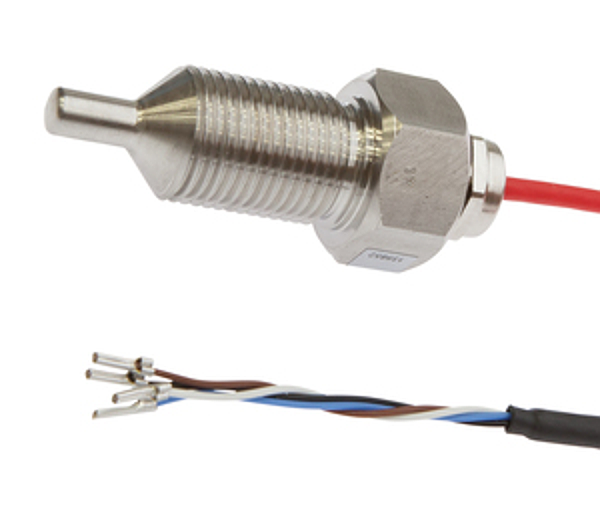

Sensor flow, Calorimetric, G1/2 inch, Anschluss an Verstärker, Cable 10m, V4A, Pressure resistance 100bar
Description
The function of the flow sensor is based on the calorimetric principle. The probe is heated up from the inside a few degrees Celsius in relation to the flow medium, in which it protrudes. When the medium flows, the heat generated in the probe is dissipated through the medium. The temperature within the sensor is measured and compared with the likewise measured medium temperature. From the obtained temperature difference the flow state of each medium can be derived. These sensors are applied in areas such as monitoring of cooling systems, ventilation systems, pump dry running by checking the presence of liquid or gas flows.
Technical parameters
| Thread length: | 48mm |
| Design: | Cylinder, screw-thread |
| Housing material: | Stainless steel 1.4571 |
| Medium temperature: | 10 - 120°C |
| Measuring range of flow velocity with water: | 0.01 - 1.5m/s |
| Cable length: | 10m |
| Pressure resistance: | 100bar |
| Type of process connection: | G1/2 inch |
| Sensing element material: | Stainless steel 1.4571 |
| Turn-off delay: | 15s |
| Pressure resistance of measuring head: | 100bar |
| Connection to amplifier: | yes |
| Measuring principle of flow: | Calorimetric |
| Type of electrical connection: | Cable |
| Adjustable responding value for flow for liquids: | 0.01 - 3m/s |
| Readiness delay: | 15ms |
| eClass 7.0: | 27371815 |
| eClass 7.1: | 27371815 |
| eClass 8.0: | 27371815 |
| eClass 9.0: | 27371815 |
| eClass 9.1: | 27371815 |
| ETIM-6.0: | EC002580 |
| ETIM-7.0: | EC002580 |
| IPF Product Group: | 300 |
| shipping weight: | 0.58kg |
| packaging dimensions: | 138.0mm x 95.0mm x 210mm |
| customs tariff number: | 90261021 |
