Product
IPF
SS896084
Request a Quote
Image copyright: IPF

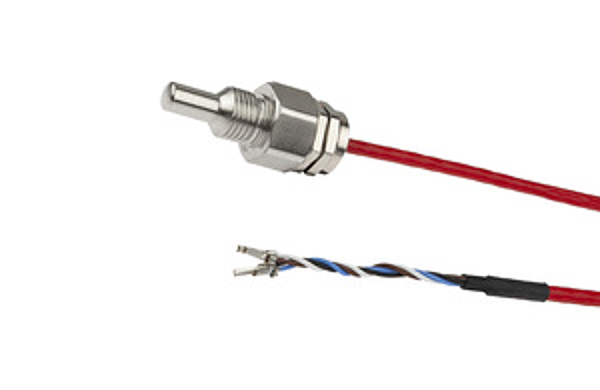

IPF SS896084
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Thread length: | 25mm |
| Design: | Cylinder, screw-thread |
| Type of process connection: | G1/4 inch |
| Sensing element material: | Stainless steel 1.4571 |
| Cable length: | 2m |
| Pressure resistance: | 100bar |
| Medium temperature: | 10 - 120°C |
| Measuring range of flow velocity with water: | 0.01 - 1.5m/s |
| Turn-off delay: | 15s |
| Adjustable responding value for flow for liquids: | 0.03 - 3m/s |
| Readiness delay: | 15ms |
| Pressure resistance of measuring head: | 100bar |
| Connection to amplifier: | yes |
| Measuring principle of flow: | Calorimetric |
| eClass 7.0: | 27371815 |
| eClass 7.1: | 27371815 |
| eClass 8.0: | 27371815 |
| eClass 9.0: | 27371815 |
| eClass 9.1: | 27371815 |
| ETIM-6.0: | EC002580 |
| ETIM-7.0: | EC002580 |
| IPF Product Group: | 300 |
| shipping weight: | 0.15kg |
| packaging dimensions: | 124.0mm x 28.0mm x 149.0mm |
| customs tariff number: | 90261021 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
