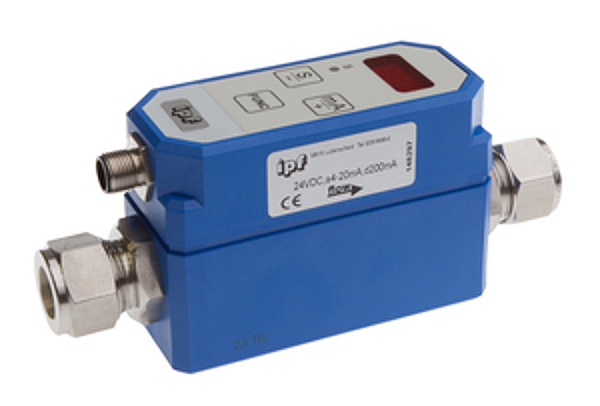

SM430025
Width: | 72mm |
Design: | Cuboid |
Length: | 100mm |
Type of process connection: | Cutting ring fitting for OD 15mm |
Degree of protection (IP) of evaluation electronics: | IP65 |
Sensing element material: | Stainless steel 1.4571 |
Measuring range of flow velocity with water: | 1 - 40m/s |
Height: | 43mm |
Pressure resistance: | 10bar |
Housing material: | PBT / PVDF |
Medium temperature: | 5 - 60°C |
Degree of protection (IP) of measuring head: | IP65 |
Measuring range of flow velocity with oil: | 1 - 40m/s |
Voltage type: | DC |
Number of pins: | 4 |
Type of electrical connection: | Plug-in connection M12 |
Type of switching function: | Programmable/configurable |
No-load current: | 100mA |
Adjustable responding value for flow for liquids: | 0.2 - 40m/s |
Readiness delay: | 10ms |
Flow measurement: | yes |
Turn-off delay: | 50s |
Type of analog output: | 4 mA ... 20 mA |
Type of switching output: | PNP |
Operating voltage: | 24 - 24V |
Rated switching current: | 200mA |
Response time: | 8000ms |
Measuring principle of flow: | Magnetic-inductive |
eClass 7.0: | 27371815 |
eClass 7.1: | 27371815 |
eClass 8.0: | 27371815 |
eClass 9.0: | 27371815 |
eClass 9.1: | 27371815 |
ETIM-6.0: | EC002580 |
ETIM-7.0: | EC002580 |
IPF Product Group: | 300 |
shipping weight: | 0.8kg |
packaging dimensions: | 138.0mm x 95.0mm x 210mm |
customs tariff number: | 90261021 |
