SL270020
Width: | 67mm |
Depth: | 112mm |
Pressure resistance: | 20bar |
Housing material: | PBT |
Degree of protection (IP) of evaluation electronics: | IP67 |
Sensing element material: | Stainless steel |
Height: | 27mm |
Design: | Cuboid |
Length: | 112mm |
Type of process connection: | G1/4 inch |
Degree of protection (IP) of measuring head: | IP67 |
Measuring range of flow velocity with air: | 0.5 - 40m/s |
Voltage type: | DC |
Type of analog output: | 4 mA ... 20 mA |
Operating voltage: | 24 - 24V |
No-load current: | 50mA |
Short-circuit protection: | yes |
Response time: | 20000ms |
Voltage drop: | 2V |
Measuring principle of flow: | Calorimetric |
Number of pins: | 4 |

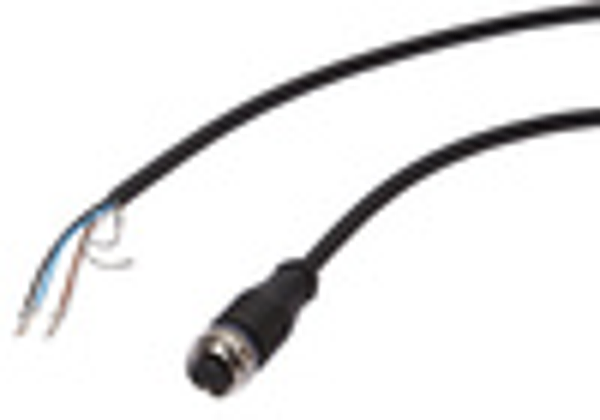

Type of electrical connection: | Plug-in connection M12 |
Setting procedure: | Manual adjustment |
Adjustable responding value for flow for gases: | 0.5 - 40m/s |
Reverse polarity protection: | yes |
Residual ripple: | 10% |
Readiness delay: | 30ms |
eClass 7.0: | 27371815 |
eClass 7.1: | 27371815 |
eClass 8.0: | 27371815 |
eClass 9.0: | 27371815 |
eClass 9.1: | 27371815 |
ETIM-6.0: | EC002580 |
ETIM-7.0: | EC002580 |
IPF Product Group: | 300 |
shipping weight: | 0.3kg |
packaging dimensions: | 99.0mm x 60mm x 160mm |
customs tariff number: | 90268020 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
