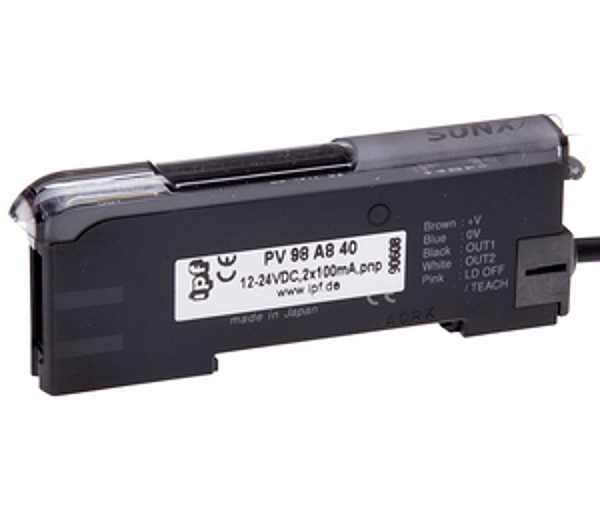

PV98A840
Mounting method: | Floor fastening |
Height: | 30mm |
Cable length: | 2m |
Length: | 10mm |
Device design: | Built-in device |
Width: | 75mm |
Depth: | 10mm |
Design: | Cuboid |
Housing material: | Plastic |
Voltage type: | DC |
Turn-off delay: | 1 - 9999ms |
Power consumption: | 0.94W |
Type of voltage supply: | Active |
Type of analog output: | 0 V ... 10 V |
Type of switching output: | PNP |
Rated switching current: | 0.1A |
Rated supply voltage at DC: | 12 - 24V |
Malfunction message output: | no |
Switching voltage DC: | 24V |
Turn-on delay: | 9999ms |
Number of channels: | 1 |
Switching capacity: | 4.8VA |
Switching voltage: | 24V |
Type of electrical connection: | Cable |
Type of switching function: | Normally open/normally closed |
Number of output circuits, transistor pnp: | 1 |
Short-circuit protection: | yes |
No-load current: | 40mA |
Operating temperature: | -20 - 70°C |
eClass 7.0: | 27210121 |
eClass 7.1: | 27210121 |
eClass 8.0: | 27210121 |
eClass 9.0: | 27210121 |
eClass 9.1: | 27210121 |
ETIM-6.0: | EC001485 |
ETIM-7.0: | EC001485 |
IPF Product Group: | 700 |
shipping weight: | 0.14kg |
packaging dimensions: | 124.0mm x 28.0mm x 149.0mm |
customs tariff number: | 85365019 |
