Product
IPF
OYQ40203
Request a Quote

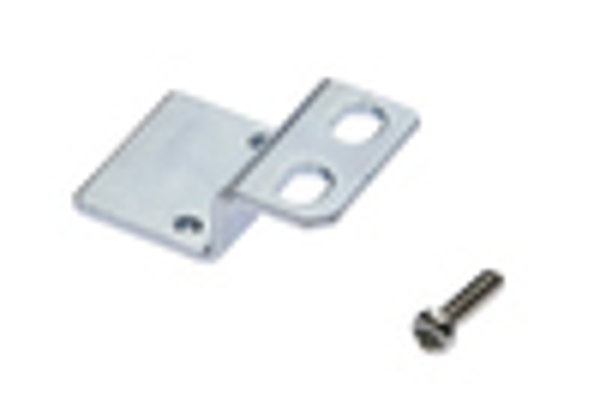

Image copyright: IPF
IPF OYQ40203
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Version: | Light barrier |
| Cable length: | 2m |
| Housing material: | Plastic PET |
| Ambient temperature: | -25 - 55°C |
| Material of cable sheath: | PVC |
| Sensor width: | 14.5mm |
| Sensor length: | 10mm |
| Vibration resistance: | 500Hz |
| Wire cross section: | 0.1mm² |
| Design: | Cuboid |
| Number of cores: | 3 |
| Material of optical surface: | Polyalylate |
| Degree of protection (IP): | IP67 |
| Sensor height: | 4.5mm |
| Shock resistance: | 50g |
| Storage temperature: | -30 - 70°C |
| Voltage type: | DC |
| Switching frequency: | 1000Hz |
| Type of switching output: | PNP |
| Operating voltage: | 12 - 24V |
| Relative repeat accuracy: | 50µm |
| Short-circuit protection: | yes |
| Rated switching distance: | 500mm |
| Response time: | 0.5ms |
| Voltage drop: | 2V |
| Decay time: | 0.5ms |
| No-load current, transmitter: | 10mA |
| Type of input voltage: | DC |
| Type of electrical connection: | Cable |
| Type of switching function: | Normally closed contact (NC) |
| Measuring range: | 0.5m |
| Rated switching current: | 50mA |
| Scanning function: | Light switching |
| Reverse polarity protection: | yes |
| Residual ripple: | 10% |
| Connection to amplifier: | no |
| No-load current, receiver: | 15mA |
| Scope of delivery of the one-way system: | Transmitter and receiver |
| Light source: | Polarity free red light |
| Light beam form: | Point |
| Wavelength of the sensor: | 680nm |
| eClass 7.0: | 27270901 |
| eClass 7.1: | 27270901 |
| eClass 8.0: | 27270901 |
| eClass 9.0: | 27270901 |
| eClass 9.1: | 27270901 |
| ETIM-6.0: | EC002716 |
| ETIM-7.0: | EC002716 |
| IPF Product Group: | 100 |
| shipping weight: | 0.06kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
