Product
IPF
OY98A061
Request a Quote

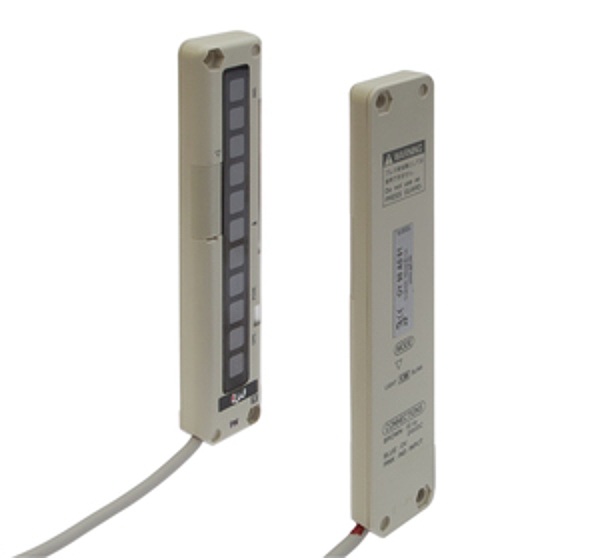

Image copyright: IPF
IPF OY98A061
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Wire cross section: | 0.3mm² |
| Housing material: | Aluminum |
| Number of cores: | 3 |
| Protected field height: | 100mm |
| Sensor width: | 140mm |
| Sensor length: | 10mm |
| Cable length: | 2m |
| Housing coating: | Anodized |
| Ambient temperature: | -10 - 55°C |
| Degree of protection (IP): | IP67 |
| Sensor height: | 30mm |
| Number of cores, receiver: | 4 |
| Voltage type: | DC |
| Number of semiconductor outputs with signaling function: | 2 |
| Type of electrical connection: | Cable |
| Type of switching function: | Normally closed contact/normally open contact |
| Equipment protection class: | Protection class 3 |
| Override possible: | no |
| Rated switching current: | 100mA |
| Reverse polarity protection: | yes |
| Number of pins, transmitter: | 3 |
| No-load current, transmitter: | 80mA |
| Cascadable: | no |
| Suppression possible: | no |
| Type of switching output: | PNP |
| Rated control supply voltage Us at DC: | 12 - 24V |
| With muting function: | no |
| Reaction time: | 10ms |
| Short-circuit protection: | yes |
| Number of pins, receiver: | 4 |
| No-load current, receiver: | 100mA |
| Explosion safety category for gas: | None |
| Scope of delivery of the one-way system: | Transmitter and receiver |
| Explosion safety category for dust: | None |
| Protected field range: | 1m |
| Wavelength of the sensor: | 880nm |
| Number of beams: | 11 |
| Beam spacing: | 10mm |
| Resolution of the light curtain: | 10mm |
| Min. distance: | 0.17m |
| eClass 7.0: | 27270910 |
| eClass 7.1: | 27270910 |
| eClass 8.0: | 27270910 |
| eClass 9.0: | 27270910 |
| eClass 9.1: | 27270910 |
| ETIM-6.0: | EC002549 |
| ETIM-7.0: | EC002549 |
| IPF Product Group: | 700 |
| shipping weight: | 0.2kg |
| packaging dimensions: | 124.0mm x 28.0mm x 149.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
