Product
IPF
OV544920
Request a Quote
Image copyright: IPF

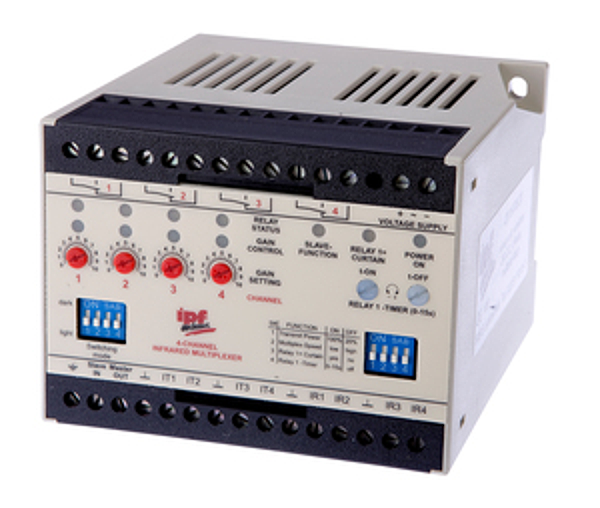

IPF OV544920
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Mounting method: | DIN rail |
| Height: | 110mm |
| Design: | Cuboid |
| Housing material: | Plastic |
| Width: | 100mm |
| Depth: | 75mm |
| Length: | 75mm |
| Degree of protection (IP): | IP20 |
| Voltage type: | AC |
| Number of channels: | 4 |
| Type of voltage supply: | Active |
| Switching frequency: | 20Hz |
| Type of switching function: | Change-over contact (NO/NC) |
| Rated switching current: | 5A |
| Output circuit, relay change-over contact: | 4 |
| Max. switching distance: | 40m |
| Number of presets to be set: | 2 |
| Turn-on delay: | 15000ms |
| Power consumption: | 6W |
| Switching voltage: | 230V |
| Type of electrical connection: | Clamps |
| Setting procedure: | IV001498 |
| Output circuit, relay normally open contact: | 1 |
| Input voltage tolerance: | 20% |
| Malfunction message output: | no |
| Operating temperature: | -25 - 50°C |
| eClass 7.0: | 27210121 |
| eClass 7.1: | 27210121 |
| eClass 8.0: | 27210121 |
| eClass 9.0: | 27210121 |
| eClass 9.1: | 27210121 |
| ETIM-6.0: | EC001485 |
| ETIM-7.0: | EC001485 |
| IPF Product Group: | 101 |
| shipping weight: | 0.62kg |
| packaging dimensions: | 110mm x 80mm x 160mm |
| customs tariff number: | 85365080 |
