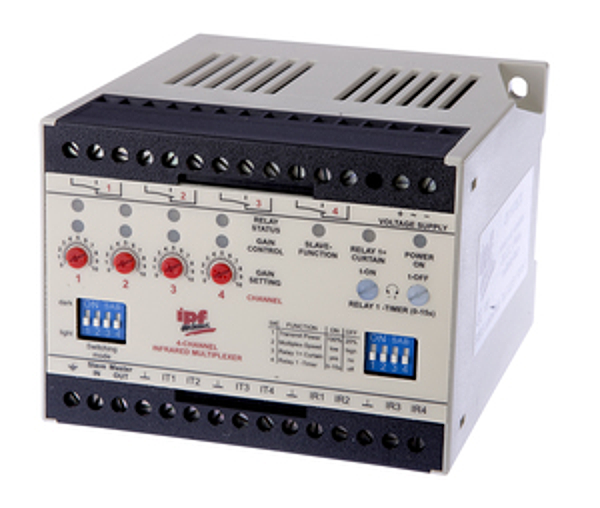

OV540920
Mounting method: | DIN rail |
Height: | 110mm |
Design: | Cuboid |
Housing material: | Plastic |
Width: | 100mm |
Depth: | 75mm |
Length: | 75mm |
Degree of protection (IP): | IP20 |
Voltage type: | DC |
Number of channels: | 4 |
Type of voltage supply: | Active |
Switching frequency: | 20Hz |
Type of switching function: | Change-over contact (NO/NC) |
Rated switching current: | 5A |
Output circuit, relay change-over contact: | 4 |
Max. switching distance: | 40m |
Number of presets to be set: | 2 |
Turn-on delay: | 15000ms |
Power consumption: | 4.5W |
Switching voltage: | 24V |
Type of electrical connection: | Clamps |
Setting procedure: | IV001498 |
Output circuit, relay normally open contact: | 1 |
Input voltage tolerance: | 20% |
Malfunction message output: | no |
Operating temperature: | -25 - 50°C |
eClass 7.0: | 27210121 |
eClass 7.1: | 27210121 |
eClass 8.0: | 27210121 |
eClass 9.0: | 27210121 |
eClass 9.1: | 27210121 |
ETIM-6.0: | EC001485 |
ETIM-7.0: | EC001485 |
IPF Product Group: | 101 |
shipping weight: | 0.45kg |
packaging dimensions: | 115.0mm x 82.0mm x 165.0mm |
customs tariff number: | 85365019 |
