Product
IPF
OT991326
Request a Quote

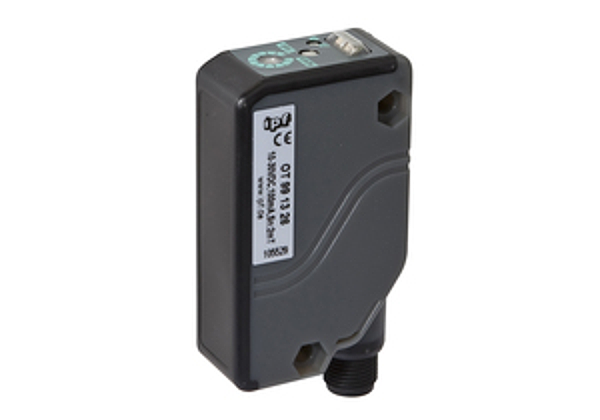

Image copyright: IPF
IPF OT991326
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Design: | Cuboid |
| Number of cores: | 3 |
| Material of optical surface: | Plastic |
| Sensor width: | 20mm |
| Sensor length: | 40mm |
| Vibration resistance: | 55Hz |
| Housing material: | Plastic |
| Ambient temperature: | -20 - 55°C |
| Degree of protection (IP): | IP67 |
| Sensor height: | 68mm |
| Shock resistance: | 50g |
| Storage temperature: | -20 - 70°C |
| Voltage type: | DC |
| Number of switching outputs: | 1 |
| Switching frequency: | 250Hz |
| Type of switching output: | PNP |
| Operating voltage: | 10 - 30V |
| No-load current: | 55mA |
| Short-circuit protection: | yes |
| Scanning function: | Light-/dark-on mode |
| Sensing range: | 100 - 2000mm |
| Response time: | 2ms |
| Residual ripple: | 15% |
| Decay time: | 2ms |
| Number of pins: | 3 |
| Adjustment range: | 100 - 2000mm |
| Type of electrical connection: | Connector M12 |
| Type of switching function: | Anticoincidence |
| Setting procedure: | Manual adjustment |
| Rated switching current: | 100mA |
| Max. switching distance: | 2000mm |
| Rated switching distance: | 2000mm |
| Reverse polarity protection: | yes |
| Hysteresis: | 10% |
| Voltage drop: | 1V |
| Light source: | Infrared light |
| Triangulation: | Background suppression |
| Background suppression: | yes |
| Wavelength of the sensor: | 880nm |
| Light beam form: | Point |
| eClass 7.0: | 27270904 |
| eClass 7.1: | 27270904 |
| eClass 8.0: | 27270904 |
| eClass 9.0: | 27270904 |
| eClass 9.1: | 27270904 |
| ETIM-6.0: | EC002719 |
| ETIM-7.0: | EC002719 |
| IPF Product Group: | 700 |
| shipping weight: | 0.06kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
