Product
IPF
OT430070
Request a Quote

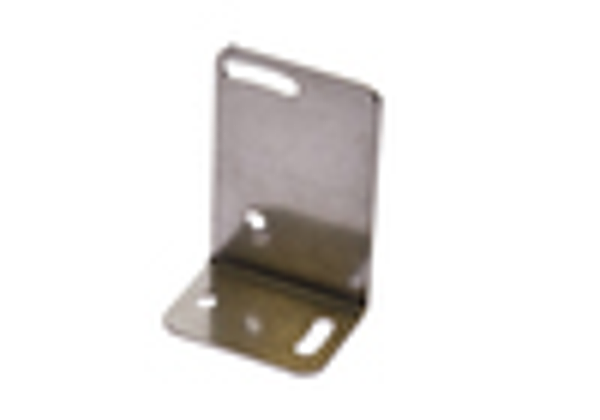

Image copyright: IPF
IPF OT430070
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Design: | Cuboid |
| Ambient temperature: | 0 - 50°C |
| Degree of protection (IP): | IP67 |
| Sensor height: | 43mm |
| Max. tightening torque: | 0.8Nm |
| Housing material: | Plastic ASA |
| Material of optical surface: | Plastic |
| Sensor width: | 14.8mm |
| Sensor length: | 32.5mm |
| Voltage type: | DC |
| Number of pins: | 4 |
| Type of analog output: | 4 mA ... 20 mA |
| Setting procedure: | Parameterization |
| Measuring method for optical distance measurement: | Triangulation |
| Rated switching current: | 100mA |
| Measuring range length: | 50 - 400mm |
| Response time: | 3ms |
| Type of alarm output: | PNP/NPN |
| Reichweite: | 400mm |
| Scanning principle: | Reflection sensor |
| Type of electrical connection: | Connector M8 |
| No-load current: | 80mA |
| Supply voltage: | 12 - 26V |
| Short-circuit protection: | yes |
| Reverse polarity protection: | yes |
| Decay time: | 3ms |
| IO-Link compatible: | yes |
| Relative linearity deviation: | 4% |
| Light source: | Polarity free red light |
| Resolution: | 1000µm |
| Light spot, laser focus: | 50.27mm² |
| Wavelength of the sensor: | 660nm |
| Light beam form: | Point |
| Light spot range: | 50 - 50mm² |
| eClass 7.0: | 27270801 |
| eClass 7.1: | 27270801 |
| eClass 8.0: | 27270801 |
| eClass 9.0: | 27270801 |
| eClass 9.1: | 27270801 |
| ETIM-6.0: | EC001825 |
| ETIM-7.0: | EC001825 |
| IPF Product Group: | 109 |
| shipping weight: | 0.02kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85365019 |
