IPF
OT120100
Request a Quote
Image copyright: IPF

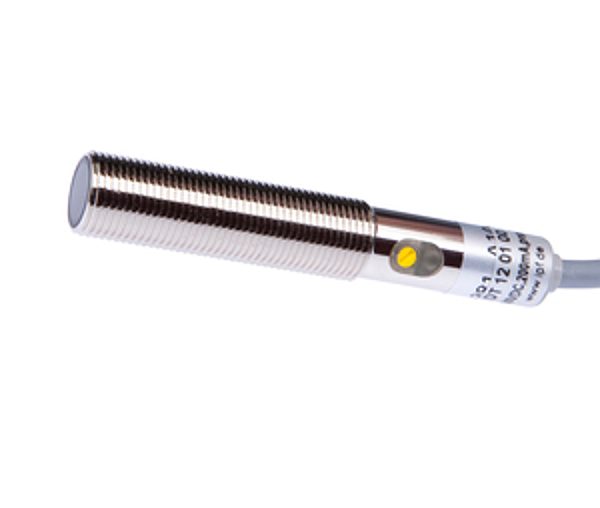

IPF OT120100
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Wire cross section: | 0.34mm² |
| Cable length: | 2m |
| Housing material: | Brass |
| Number of cores: | 3 |
| Thread size, metric: | 12 |
| Material of optical surface: | Plastic |
| Degree of protection (IP): | IP65 |
| Thread length: | 42mm |
| Design: | Cylinder, screw-thread |
| Housing coating: | Nickel-plated |
| Ambient temperature: | -25 - 65°C |
| Thread pitch: | 1mm |
| Material of cable sheath: | PVC |
| Sensor length: | 70mm |
| Voltage type: | DC |
| Switching frequency: | 500Hz |
| Type of switching output: | PNP |
| Equipment protection class: | Protection class 3 |
| Setting procedure: | Manual adjustment |
| Rated switching current: | 200mA |
| Max. switching distance: | 200mm |
| Sensing range: | 30 - 200mm |
| Response time: | 1ms |
| Decay time: | 1ms |
| Number of switching outputs: | 1 |
| Type of electrical connection: | Cable |
| Type of switching function: | Normally open contact (NO) |
| Operating voltage: | 10 - 30V |
| No-load current: | 42mA |
| Short-circuit protection: | yes |
| Scanning function: | Light switching |
| Reverse polarity protection: | yes |
| Voltage drop: | 1.8V |
| Light source: | Infrared light |
| Light exit: | Axial |
| Wavelength of the sensor: | 880nm |
| Light beam form: | Point |
| eClass 7.0: | 27270903 |
| eClass 7.1: | 27270903 |
| eClass 8.0: | 27270903 |
| eClass 9.0: | 27270903 |
| eClass 9.1: | 27270903 |
| ETIM-6.0: | EC001821 |
| ETIM-7.0: | EC001821 |
| IPF Product Group: | 100 |
| shipping weight: | 0.1kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85365019 |
