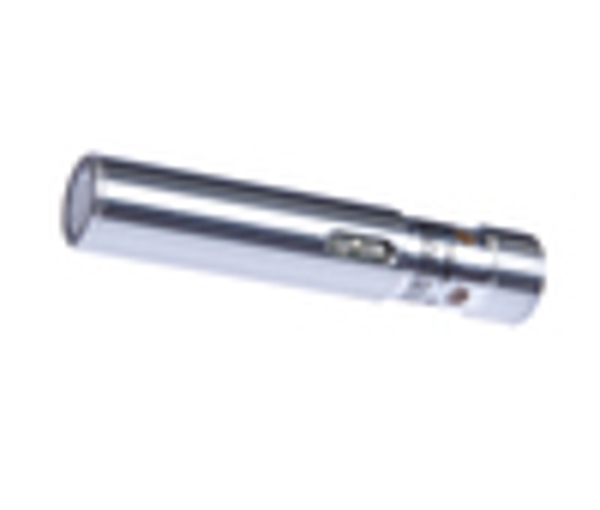

OS120006
Version: | Through-beam sensor transmitter |
Thread length: | 50mm |
Design: | Cylinder, screw-thread |
Housing coating: | Chrome-plated |
Ambient temperature: | -25 - 55°C |
Thread pitch: | 1mm |
Material of cable sheath: | PVC |
Sensor length: | 50mm |
Wire cross section: | 0.34mm² |
Cable length: | 2m |
Housing material: | Brass |
Number of cores: | 3 |
Thread size, metric: | 12 |
Material of optical surface: | Glass |
Degree of protection (IP): | IP67 |
Max. tightening torque: | 10Nm |
Voltage type: | DC |
Type of electrical connection: | Cable |
No-load current: | 15mA |
Reverse polarity protection: | yes |
Connection to amplifier: | no |
Clock frequency of the transmitter: | 15kHz |
No-load current, transmitter: | 15mA |
Type of input voltage: | DC |
Operating voltage: | 10 - 35V |
Measuring range: | 10m |
Residual ripple: | 20% |
Readiness delay: | 20ms |
Function test: | yes |
Scope of delivery of the one-way system: | Transmitter |
Light source: | Polarity free red light |
Light beam form: | Point |
Wavelength of the sensor: | 660nm |
eClass 7.0: | 27270901 |
eClass 7.1: | 27270901 |
eClass 8.0: | 27270901 |
eClass 9.0: | 27270901 |
eClass 9.1: | 27270901 |
ETIM-6.0: | EC002716 |
ETIM-7.0: | EC002716 |
IPF Product Group: | 100 |
shipping weight: | 0.11kg |
packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
customs tariff number: | 85365019 |
