Product
IPF
OR98C008
Request a Quote
Image copyright: IPF

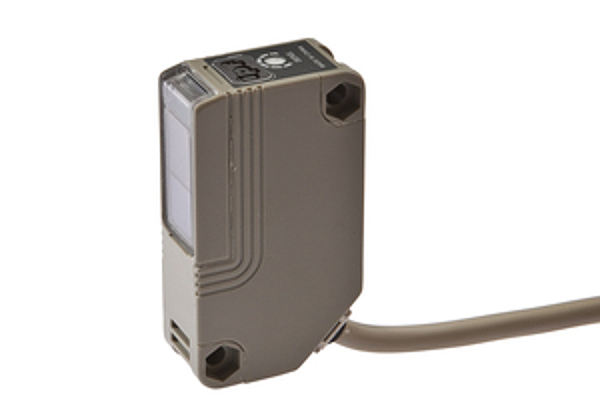

IPF OR98C008
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Wire cross section: | 0.3mm² |
| Design: | Cuboid |
| Number of cores: | 5 |
| Material of optical surface: | Acrylic glass |
| Sensor width: | 18mm |
| Sensor length: | 35mm |
| Cable length: | 2m |
| Housing material: | Plastic PC |
| Ambient temperature: | -25 - 55°C |
| Degree of protection (IP): | IP66 |
| Sensor height: | 62mm |
| Voltage type: | AC/DC |
| Switching frequency: | 500Hz |
| Type of switching output: | Relay contact |
| Rated control supply voltage Us at AC 50HZ: | 24 - 240V |
| Relative repeat accuracy: | 0.2mm |
| Max. switching distance: | 5000mm |
| Rated switching distance: | 5000mm |
| Response time: | 10ms |
| With polarizing filter: | yes |
| Type of input voltage: | AC/DC |
| Type of electrical connection: | Cable |
| Type of switching function: | Change-over contact (NO/NC) |
| Operating voltage: | 24 - 240V |
| Short-circuit protection: | no |
| Scanning function: | Light-/dark-on mode |
| Reverse polarity protection: | no |
| Decay time: | 10ms |
| Function test: | no |
| Light source: | Polarized red light |
| Wavelength of the sensor: | 660nm |
| For transparent objects: | no |
| Min. reflector distance: | 100mm |
| Light beam form: | Point |
| eClass 7.0: | 27270902 |
| eClass 7.1: | 27270902 |
| eClass 8.0: | 27270902 |
| eClass 9.0: | 27270902 |
| eClass 9.1: | 27270902 |
| ETIM-6.0: | EC002717 |
| ETIM-7.0: | EC002717 |
| IPF Product Group: | 700 |
| shipping weight: | 0.37kg |
| packaging dimensions: | 124.0mm x 28.0mm x 149.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
