Product
IPF
OR505800
Request a Quote

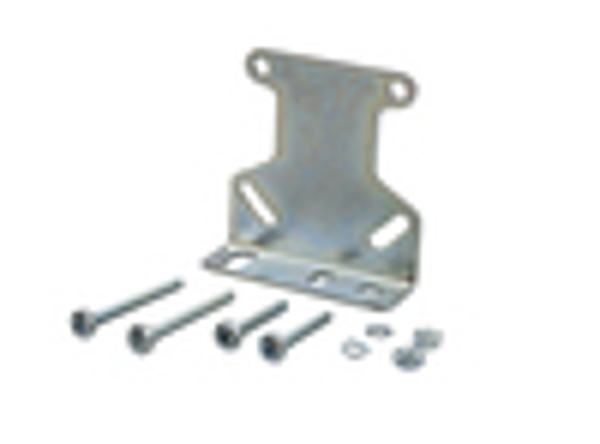

Image copyright: IPF
IPF OR505800
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Cable length: | 2m |
| Housing material: | Plastic ABS |
| Ambient temperature: | -25 - 55°C |
| Material of cable sheath: | PVC |
| Sensor width: | 18mm |
| Sensor length: | 50mm |
| Design: | Cuboid |
| Number of cores: | 5 |
| Material of optical surface: | PMMA |
| Degree of protection (IP): | IP65 |
| Sensor height: | 50mm |
| Storage temperature: | 25 - 70°C |
| Voltage type: | AC/DC |
| Switching frequency: | 16Hz |
| Type of switching output: | Relay contact |
| Rated control supply voltage Us at AC 50HZ: | 15 - 264V |
| Setting procedure: | Manual adjustment |
| Rated switching current: | 3000mA |
| Max. switching distance: | 5000mm |
| Rated switching distance: | 5000mm |
| Response time: | 30ms |
| With polarizing filter: | yes |
| Type of input voltage: | AC/DC |
| Type of electrical connection: | Cable |
| Type of switching function: | Change-over contact (NO/NC) |
| Operating voltage: | 15 - 264V |
| No-load current: | 40mA |
| Short-circuit protection: | no |
| Scanning function: | Light-/dark-on mode |
| Reverse polarity protection: | yes |
| Decay time: | 30ms |
| Function test: | no |
| Light source: | Polarized red light |
| Light beam form: | Point |
| Wavelength of the sensor: | 660nm |
| For transparent objects: | no |
| eClass 7.0: | 27270902 |
| eClass 7.1: | 27270902 |
| eClass 8.0: | 27270902 |
| eClass 9.0: | 27270902 |
| eClass 9.1: | 27270902 |
| ETIM-6.0: | EC002717 |
| ETIM-7.0: | EC002717 |
| IPF Product Group: | 100 |
| shipping weight: | 0.23kg |
| packaging dimensions: | 124.0mm x 28.0mm x 149.0mm |
| customs tariff number: | 85365080 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
