Product
IPF
OR285906
Request a Quote

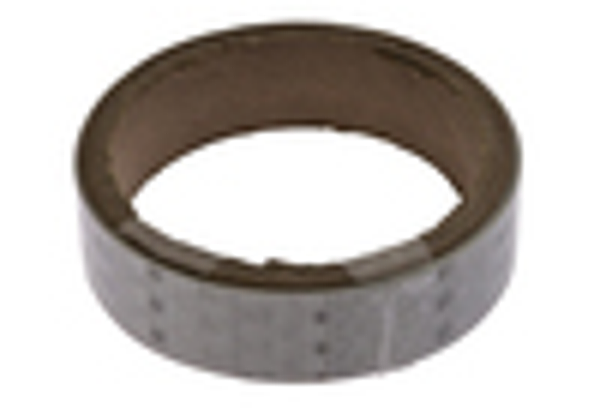

Image copyright: IPF
IPF OR285906
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Design: | Cuboid |
| Ambient temperature: | -40 - 55°C |
| Degree of protection (IP): | IP67 |
| Sensor height: | 85mm |
| Storage temperature: | -40 - 70°C |
| Housing material: | PBT |
| Material of optical surface: | Glass |
| Sensor width: | 28mm |
| Sensor length: | 70mm |
| Voltage type: | AC/DC |
| Turn-off delay: | 10s |
| Type of input voltage: | AC/DC |
| Type of electrical connection: | Clamp |
| Type of switching function: | Change-over contact (NO/NC) |
| Operating voltage: | 24 - 240V |
| Rated switching current: | 3000mA |
| Max. switching distance: | 20000mm |
| Rated switching distance: | 20000mm |
| Response time: | 20ms |
| Decay time: | 20ms |
| Function test: | no |
| Turn-on delay: | 10s |
| Number of pins: | 6 |
| Switching frequency: | 25Hz |
| Type of switching output: | Relay contact |
| Rated control supply voltage Us at AC 50HZ: | 24 - 240V |
| Setting procedure: | Manual adjustment |
| Short-circuit protection: | no |
| Scanning function: | Light-/dark-on mode |
| Reverse polarity protection: | yes |
| Residual ripple: | 10% |
| With polarizing filter: | yes |
| Light source: | Polarized red light |
| Light beam form: | Point |
| Wavelength of the sensor: | 660nm |
| For transparent objects: | no |
| eClass 7.0: | 27270902 |
| eClass 7.1: | 27270902 |
| eClass 8.0: | 27270902 |
| eClass 9.0: | 27270902 |
| eClass 9.1: | 27270902 |
| ETIM-6.0: | EC002717 |
| ETIM-7.0: | EC002717 |
| IPF Product Group: | 100 |
| shipping weight: | 0.21kg |
| packaging dimensions: | 90mm x 55.0mm x 120mm |
| customs tariff number: | 85365080 |
