Product
IPF
OI98E239
Request a Quote
Image copyright: IPF

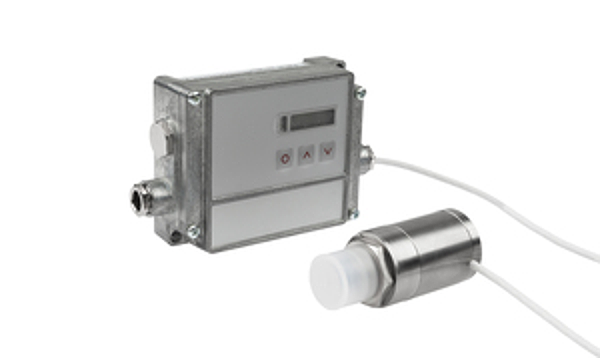

IPF OI98E239
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Width: | 122mm |
| Design: | Cuboid |
| Housing material: | Stainless steel 1.4571 |
| Thread size, metric: | 18 |
| Degree of protection (IP): | IP65 |
| Sensor length: | 55mm |
| Cable length of measuring head: | 8m |
| Height: | 30mm |
| Length: | 70mm |
| Ambient temperature: | 0 - 85°C |
| Thread pitch: | 1mm |
| Sensor diameter: | 29.5mm |
| Operating temperature of the measuring head: | -20 - 250°C |
| Voltage type: | DC |
| Measuring range: | -40 - 975°C |
| Type of electrical connection: | Clamp |
| Operating voltage: | 8 - 36V |
| No-load current: | 160mA |
| Relative repeat accuracy: | 0.5% |
| Rated switching current: | 50mA |
| Response time: | 150ms |
| Switching function of the alarm output: | EV006675 |
| Interface possible: | yes |
| Display: | Digital |
| Type of analog output: | 0 / 4 … 20 mA, 0 … 5 / 10 V |
| Type of switching function: | Normally open contact (NO) |
| Setting procedure: | Parameterization |
| Relative measurement accuracy: | 1% |
| Infrared measurement: | yes |
| Temperature drift: | 0.05% |
| Type of alarm output: | PNP |
| Programmable via software: | yes |
| Data logging possible: | yes |
| Ratio (D:S): | 2:1 |
| Small measuring spot: | yes |
| Spectral sensitivity: | 8 - 14µm |
| eClass 7.0: | 27201120 |
| eClass 7.1: | 27201120 |
| eClass 8.0: | 27201120 |
| eClass 9.0: | 27201120 |
| eClass 9.1: | 27201120 |
| ETIM-6.0: | EC000601 |
| ETIM-7.0: | EC000601 |
| IPF Product Group: | 700 |
| shipping weight: | 0.93kg |
| packaging dimensions: | 155.0mm x 85.0mm x 180mm |
| customs tariff number: | 90251900 |
| Zolltarifnummer: | 90251900 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
