IPF
OG032180
Request a Quote
Image copyright: IPF

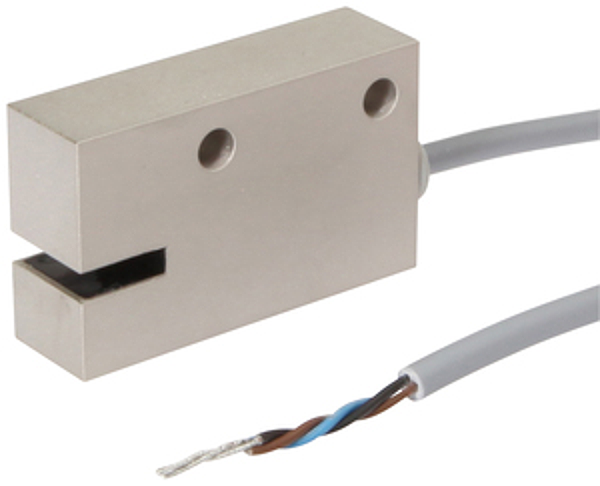

IPF OG032180
Sensor optical, fork, 25x12x41mm, fork width 3mm, 4.5-30V DC, 1x PNP NO (NO), Cable 3pin 2m, IP65, Brass, Infrared light, 50kHz
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Fork / angular light barriers. Special design of through-beam sensor. Transmitter and receiver are located in the fork or angular limbs and are perfectly aligned to each other.
Technical parameters
| Cable length: | 2m |
| Housing material: | Brass |
| Degree of protection (IP): | IP65 |
| Sensor height: | 25mm |
| Fork depth: | 10mm |
| Fork light barrier design: | Furcate |
| Design: | Cuboid |
| Ambient temperature: | -25 - 65°C |
| Sensor width: | 41mm |
| Sensor length: | 12mm |
| Fork width: | 3mm |
| Installation bracket: | no |
| Voltage type: | DC |
| Number of switching outputs: | 1 |
| Type of electrical connection: | Cable |
| Type of switching function: | Normally open contact (NO) |
| Operating voltage: | 4.5 - 30V |
| Relative repeat accuracy: | 0.01mm |
| Scanning function: | Dark switching |
| Hysteresis: | 0.1mm |
| Connection to amplifier: | no |
| Repeatability +/-: | 10µm |
| Number of pins: | 3 |
| Switching frequency: | 50000Hz |
| Type of switching output: | PNP |
| Equipment protection class: | Protection class 3 |
| No-load current: | 25mA |
| Rated switching current: | 100mA |
| Reverse polarity protection: | yes |
| Voltage drop: | 1V |
| Type of the forked light barrier: | Standard |
| Dynamic switching output: | no |
| Laser protection class: | None |
| Resolution: | 800µm |
| Light wavelength of the transmitter diode: | 935nm |
| Pulsed light source: | no |
| Min. object size: | 0.8mm |
| Light beam form: | Point |
| Light color of the transmitter diode: | Infrared light |
| eClass 7.0: | 27270909 |
| eClass 7.1: | 27270909 |
| eClass 8.0: | 27270909 |
| eClass 9.0: | 27270909 |
| eClass 9.1: | 27270909 |
| ETIM-6.0: | EC002720 |
| ETIM-7.0: | EC002720 |
| IPF Product Group: | 110 |
| shipping weight: | 0.12kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
