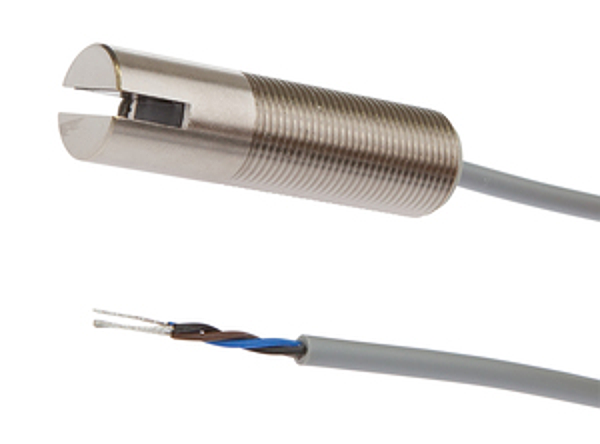

OG032100
Cable length: | 2m |
Housing material: | Brass |
Thread size, metric: | 14 |
Degree of protection (IP): | IP65 |
Fork depth: | 10mm |
Fork light barrier design: | Furcate |
Design: | Cylinder, screw-thread |
Ambient temperature: | -25 - 65°C |
Thread pitch: | 1mm |
Sensor length: | 50mm |
Fork width: | 3mm |
Installation bracket: | no |
Voltage type: | DC |
Number of switching outputs: | 1 |
Type of electrical connection: | Cable |
Type of switching function: | Normally open contact (NO) |
Operating voltage: | 4.5 - 28V |
Relative repeat accuracy: | 0.01mm |
Scanning function: | Dark switching |
Hysteresis: | 0.1mm |
Connection to amplifier: | no |
Repeatability +/-: | 10µm |
Number of pins: | 3 |
Switching frequency: | 50000Hz |
Type of switching output: | PNP |
Equipment protection class: | Protection class 3 |
No-load current: | 25mA |
Rated switching current: | 100mA |
Reverse polarity protection: | yes |
Voltage drop: | 1V |
Type of the forked light barrier: | Standard |
Dynamic switching output: | no |
Laser protection class: | None |
Resolution: | 800µm |
Light wavelength of the transmitter diode: | 935nm |
Pulsed light source: | no |
Min. object size: | 0.8mm |
Light beam form: | Point |
Light color of the transmitter diode: | Infrared light |
eClass 7.0: | 27270909 |
eClass 7.1: | 27270909 |
eClass 8.0: | 27270909 |
eClass 9.0: | 27270909 |
eClass 9.1: | 27270909 |
ETIM-6.0: | EC002720 |
ETIM-7.0: | EC002720 |
IPF Product Group: | 110 |
shipping weight: | 0.08kg |
packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
customs tariff number: | 85365019 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
