Product
IPF
NY000004
Request a Quote

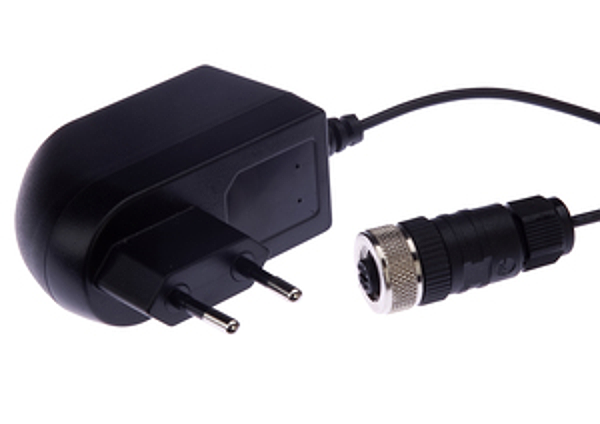

Image copyright: IPF
IPF NY000004
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Width: | 75mm |
| Depth: | 43mm |
| Housing material: | Plastic |
| Height: | 34mm |
| Cable length: | 1.8m |
| Storage temperature: | -20 - 85°C |
| Output voltage: | 24V |
| Pin assignment: | PIN 1/3 |
| Voltage type of supply voltage: | AC |
| Type of electrical connection: | Connector M12 |
| Rated supply voltage at AC 50 Hz: | 100 - 240V |
| Output voltage, pulsed: | yes |
| Frequency: | 47 - 63Hz |
| Number of pins: | 4 |
| Power output: | 24W |
| 1. output voltage: | 24 - 24V |
| Max. output current 1: | 1A |
| Air humidity(MIN): | 8 - 90% |
| eClass 7.0: | 27049002 |
| eClass 7.1: | 27049002 |
| eClass 8.0: | 27049002 |
| eClass 9.0: | 27040701 |
| eClass 9.1: | 27040701 |
| ETIM-6.0: | EC002540 |
| ETIM-7.0: | EC002540 |
| IPF Product Group: | 400 |
| shipping weight: | 0.19kg |
| packaging dimensions: | 74.0mm x 74.0mm x 143.0mm |
| customs tariff number: | 85044090 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
