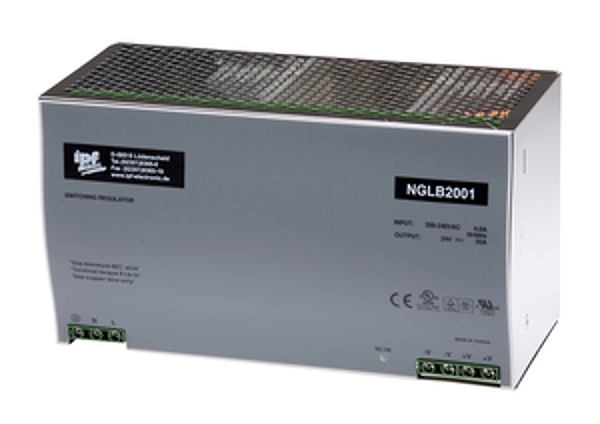

NGLB2001
DC-power supply, single-phase, 125x100x227mm, 480W, 20A, 180-264V AC 50Hz, 180-264V AC 60Hz, 250-370V DC, Screw connection, IP20, Aluminum, 1. output voltage 24-28V, Stabilized, Output voltage, pulsed
Pulsed power supplies. Pulsed power supplies are used to supply electrical systems or system parts with a stabilized DC voltage. Due to the lower copper losses, pulsed power supplies in the lower power range are considerably more efficient than power transformers. Furthermore, they are more compact and are lighter weight than conventional, linear regulated power supplies, which contain a heavy transformer with iron core and cause additional losses in the linear regulator.
Width: | 227mm |
Depth: | 100mm |
Housing material: | Aluminum |
Degree of protection (IP): | IP20 |
Height: | 125.2mm |
Weight: | 2100g |
Ambient temperature: | -20 - 70°C |
Storage temperature: | -20 - 85°C |
Output voltage: | 24V |
Voltage type of supply voltage: | AC/DC |
Type of electrical connection: | Screw connection |
1. output voltage: | 24 - 28V |
Rated supply voltage at AC 60 Hz: | 180 - 264V |
Max. output current 1: | 20A |
Overload protection: | 105 … 150% of the power consumption |
Frequency: | 47 - 63Hz |
Power output: | 480W |
Max. input current: | 4A |
Rated supply voltage at AC 50 Hz: | 180 - 264V |
Rated supply voltage at DC: | 250 - 370V |
Residual ripple: | 1% |
Output voltage, pulsed: | yes |
Air humidity(MIN): | 20 - 90% |
eClass 7.0: | 27049002 |
eClass 7.1: | 27049002 |
eClass 8.0: | 27049002 |
eClass 9.0: | 27040701 |
eClass 9.1: | 27040701 |
ETIM-6.0: | EC002540 |
ETIM-7.0: | EC002540 |
IPF Product Group: | 400 |
shipping weight: | 2.45kg |
packaging dimensions: | 145.0mm x 151.0mm x 280mm |
customs tariff number: | 85044090 |
