Product
IPF
NGKB1001
Request a Quote
Image copyright: IPF

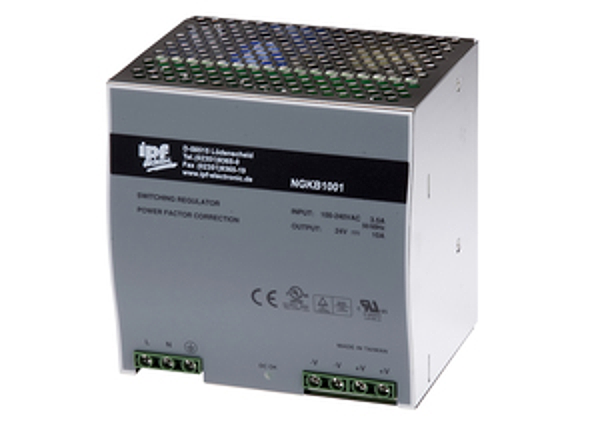

IPF NGKB1001
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Width: | 125.5mm |
| Depth: | 100mm |
| Housing material: | Aluminum |
| Degree of protection (IP): | IP20 |
| Height: | 125mm |
| Weight: | 1200g |
| Ambient temperature: | -10 - 70°C |
| Storage temperature: | -20 - 85°C |
| Output voltage: | 24V |
| Voltage type of supply voltage: | AC/DC |
| Type of electrical connection: | Screw connection |
| 1. output voltage: | 24 - 28V |
| Rated supply voltage at AC 60 Hz: | 85 - 264V |
| Max. output current 1: | 10A |
| Overload protection: | 105 … 150% of the power consumption |
| Frequency: | 47 - 63Hz |
| Power output: | 240W |
| Max. input current: | 1.4A |
| Rated supply voltage at AC 50 Hz: | 85 - 264V |
| Rated supply voltage at DC: | 120 - 370V |
| Residual ripple: | 1% |
| Output voltage, pulsed: | yes |
| Air humidity(MIN): | 20 - 90% |
| eClass 7.0: | 27049002 |
| eClass 7.1: | 27049002 |
| eClass 8.0: | 27049002 |
| eClass 9.0: | 27040701 |
| eClass 9.1: | 27040701 |
| ETIM-6.0: | EC002540 |
| ETIM-7.0: | EC002540 |
| IPF Product Group: | 400 |
| shipping weight: | 1.25kg |
| packaging dimensions: | 150mm x 130mm x 145.0mm |
| customs tariff number: | 85044090 |
