Product
IPF
NG780307
Request a Quote
Image copyright: IPF

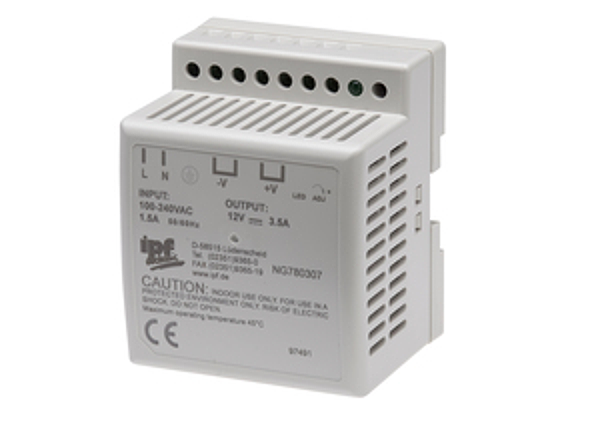

IPF NG780307
DC-power supply, single-phase, 93x67x78mm, 42W, 3.5A, 85-264V AC, Screw connection, IP20, Plastic, 1. output voltage 10.8-13.2V, Stabilized, Output voltage, pulsed
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Pulsed power supplies are used to supply electrical systems or system parts with a stabilized DC voltage. Due to the lower copper losses, pulsed power supplies in the lower power range are considerably more efficient than power transformers. Furthermore, they are more compact and are lighter weight than conventional, linear regulated power supplies, which contain a heavy transformer with iron core and cause additional losses in the linear regulator.
Technical parameters
| Width: | 78mm |
| Depth: | 67mm |
| Housing material: | Plastic |
| Degree of protection (IP): | IP20 |
| Height: | 93mm |
| Weight: | 400g |
| Ambient temperature: | -10 - 50°C |
| Storage temperature: | -20 - 85°C |
| Output voltage: | 12V |
| Voltage type of supply voltage: | AC/DC |
| Type of electrical connection: | Screw connection |
| 1. output voltage: | 10.8 - 13.2V |
| Max. output current 1: | 3.5A |
| Overload protection: | 105 … 150% of the power consumption |
| Frequency: | 47 - 63Hz |
| Power output: | 42W |
| Max. input current: | 0.75A |
| Rated supply voltage at AC 50 Hz: | 85 - 264V |
| Residual ripple: | 1% |
| Output voltage, pulsed: | yes |
| Air humidity(MIN): | 20 - 90% |
| eClass 7.0: | 27049002 |
| eClass 7.1: | 27049002 |
| eClass 8.0: | 27049002 |
| eClass 9.0: | 27040701 |
| eClass 9.1: | 27040701 |
| ETIM-6.0: | EC002540 |
| ETIM-7.0: | EC002540 |
| IPF Product Group: | 400 |
| shipping weight: | 0.32kg |
| packaging dimensions: | 85.0mm x 75.0mm x 100mm |
| customs tariff number: | 85044090 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
