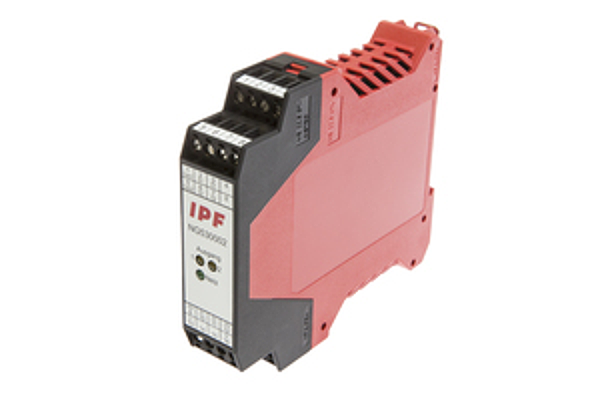

NG530002
Width: | 22.5mm |
Depth: | 114.5mm |
Degree of protection (IP): | IP20 |
Height: | 99mm |
Housing material: | Plastic |
Output voltage: | 24V |
Voltage type of supply voltage: | AC |
Type of electrical connection: | Screw connection |
1. output voltage: | 24 - 24V |
Rated supply voltage at AC 60 Hz: | 100 - 264V |
Max. output current 1: | 0.1A |
Overload protection: | 105 … 160% of the output power |
Frequency: | 47 - 63Hz |
Power output: | 2.4W |
Max. input current: | 0.05A |
Rated supply voltage at AC 50 Hz: | 100 - 264V |
Number of relay outputs: | 2 |
Residual ripple: | 1% |
Output voltage, pulsed: | yes |
Air humidity(MIN): | 20 - 90% |
eClass 7.0: | 27049002 |
eClass 7.1: | 27049002 |
eClass 8.0: | 27049002 |
eClass 9.0: | 27040701 |
eClass 9.1: | 27040701 |
ETIM-6.0: | EC002540 |
ETIM-7.0: | EC002540 |
IPF Product Group: | 400 |
shipping weight: | 0.14kg |
packaging dimensions: | 124.0mm x 28.0mm x 149.0mm |
customs tariff number: | 85044090 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
