Product
IPF
MZ310100
Request a Quote

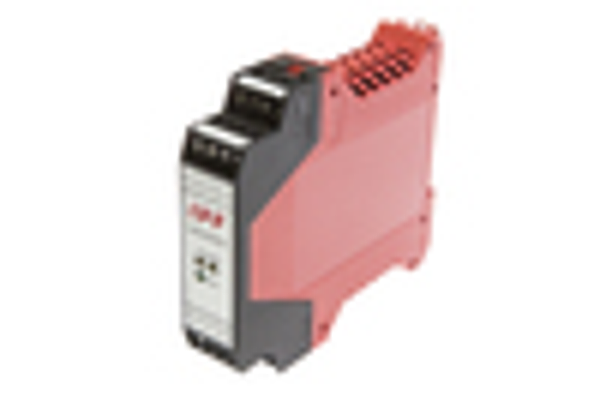

Image copyright: IPF
IPF MZ310100
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Version: | Pull-rod mount |
| Design: | Cuboid |
| Number of cores: | 3 |
| Material of cable sheath: | PUR (Polyurethane) |
| Sensor width: | 30.0mm |
| Sensor length: | 23.0mm |
| Mounting access, cylinder groove: | From the top |
| Cable length: | 2m |
| Housing material: | Aluminum |
| Ambient temperature: | -25 - 75°C |
| Degree of protection (IP): | IP67 |
| Sensor height: | 30mm |
| Sensor surface position: | Border area of the device |
| Voltage type: | DC |
| Switching frequency: | 5000Hz |
| Type of switching output: | PNP |
| Operating voltage: | 10 - 30V |
| Cross/short circuit identification possible: | no |
| Rated switching current: | 300mA |
| Reverse polarity protection: | yes |
| Voltage drop: | 1.5V |
| Number of switching outputs: | 1 |
| Type of electrical connection: | Cable |
| Type of switching function: | Normally open contact |
| No-load current: | 10mA |
| Relative repeat accuracy: | 0.1mm |
| Short-circuit protection: | yes |
| Hysteresis: | 1mm |
| Sensor surface (active): | Border area / edge area |
| eClass 7.0: | 27270105 |
| eClass 7.1: | 27270105 |
| eClass 8.0: | 27270105 |
| eClass 9.0: | 27270105 |
| eClass 9.1: | 27270105 |
| ETIM-6.0: | EC002544 |
| ETIM-7.0: | EC002544 |
| IPF Product Group: | 220 |
| shipping weight: | 0.09kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
