Product
IPF
LT202600
Request a Quote
Image copyright: IPF

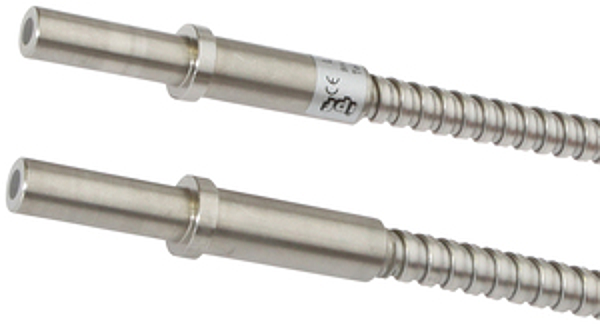

IPF LT202600
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Version: | Diffuse reflection sensor-infrared sensors |
| Fiber diameter: | 8mm |
| Number of fibers: | 1 |
| Fiber optics core material: | Glass |
| Sensing head diameter: | 8mm |
| Fiber optic with small bending radius: | no |
| Sensing head diameter 1: | 8 |
| Overall length: | 2000mm |
| Design: | Cylinder plain |
| Ambient temperature: | -0 - 250°C |
| Sheathing material: | Silicone |
| Bendable: | no |
| Fiber optic with bendable head: | no |
| Sensing head material: | Stainless steel |
| Short-circuit protection: | no |
| Bending angle of the sensing head: | 0° |
| Bending section of the sensing head: | 0mm |
| Reverse polarity protection: | no |
| Light exit: | Axial |
| Fiber optic for attachment optics: | no |
| Fiber optic with coaxial structure: | no |
| Fiber optic with linear light beam: | no |
| eClass 7.0: | 27270905 |
| eClass 7.1: | 27270905 |
| eClass 8.0: | 27270905 |
| eClass 9.0: | 27270905 |
| eClass 9.1: | 27270905 |
| ETIM-6.0: | EC002651 |
| ETIM-7.0: | EC002651 |
| IPF Product Group: | 150 |
| shipping weight: | 0.25kg |
| packaging dimensions: | 124.0mm x 28.0mm x 149.0mm |
| customs tariff number: | 90011090 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
