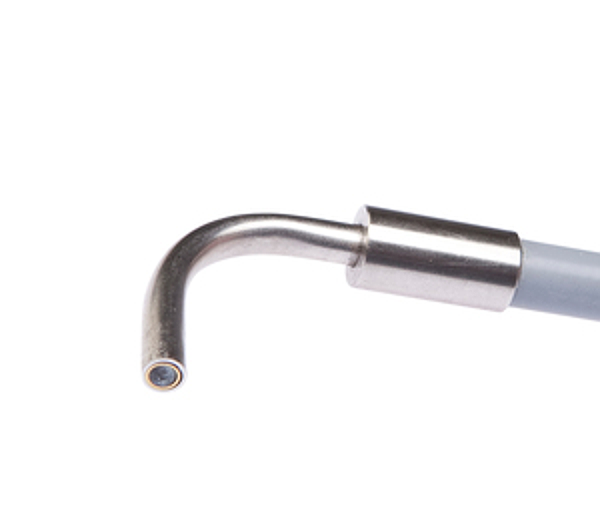

Article image LT150311

IPF LT150311

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Technical parameters

Version: Reflection sensor
Fiber diameter: 2.3mm
Number of fibers: 1
Fiber optics core material: Glass
Sheathing material: Silicone
Sensing head diameter: 4mm
End piece diameter: 20mm
End piece thread pitch: 1mm
Fiber optic with small bending radius: no
Bending radius (fixed): 25mm
Sensing head diameter 1: 4
Sensing head material: Stainless steel
Overall length: 1500mm
Design: Cylinder plain
Ambient temperature: -40 - 180°C
Degree of protection (IP): IP67
End piece length: 28mm
Metric thread size of end piece: 18mm
Bendable: no
Fiber optic with bendable head: no
Bending radius (flexible): 50mm
Fiber optic cable diameter: 6.7
Sensing head diameter 2: 8
End piece material: Brass
Short-circuit protection: no
Reverse polarity protection: no
Bending angle of the sensing head: 90°
Bending section of the sensing head: 0mm
Max. switching distance: 45mm
Sensing head length: 37mm
Light exit: Axial
Nominal operating distance: 45mm
Fiber optic with linear light beam: no
Fiber optic for attachment optics: no
Fiber optic with coaxial structure: no
eClass 7.0: 27270905
eClass 7.1: 27270905
eClass 8.0: 27270905
eClass 9.0: 27270905
eClass 9.1: 27270905
ETIM-6.0: EC002651
ETIM-7.0: EC002651
IPF Product Group: 150
shipping weight: 0.16kg
packaging dimensions: 124.0mm x 28.0mm x 149.0mm
customs tariff number: 90011090
Zolltarifnummer: 90011090

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
