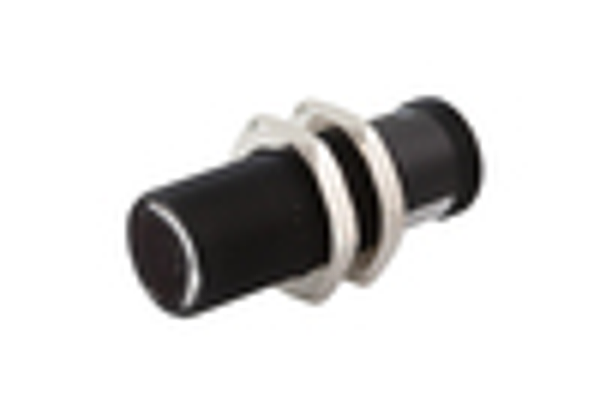

Article image LT060382

IPF LT060382

Fiber optic diffuse-reflection sensor, 0.6m, head: Stainless steel 24long Ø4.5 Ø6.6, Light exit Axial, conductor: Glassfiber+Silicone, end piece: M18x1 Plastic, -40-180°C, for UV light

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Fiber optics in combination with the appropriate fiber optic amplifier function as contactless and wear-free position switches that can also be used in harsh environmental conditions. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). Because the ends and heads of the fiber optics have small dimensions and the fiber optics are flexible, very elegant solutions can be created for detecting objects in places that are difficult to access. Fiber optics can be used without special precautions in potentially explosive areas and in zones with electrical and/or magnetic fields (high-voltage installations, electrical welding equipment) as their function is not thereby affected. Fiber optics are available in versions for implementing the function as through-beam sensor or diffuse reflection sensor.

Technical parameters

Version: Diffuse reflection sensor-color sensors
Fiber diameter: 2.5mm
Number of fibers: 1
Fiber optics core material: Glass
End piece length: 35mm
Metric thread size of end piece: 18mm
Bendable: no
Fiber optic with bendable head: no
Light exit diameter: 2.5
Sensing head diameter 1: 4.5
Sensing head material: Stainless steel
Overall length: 600mm
Design: Cylinder plain
Ambient temperature: -40 - 180°C
Sheathing material: Silicone
Sensing head diameter: 4.5mm
End piece diameter: 22mm
End piece thread pitch: 1mm
Fiber optic with small bending radius: no
Fiber optic cable diameter: 5.8
Sensing head diameter 2: 6.6
End piece material: Plastic
Short-circuit protection: no
Sensing head length: 24mm
Light exit: Axial
Reverse polarity protection: no
Bending angle of the sensing head:
Suitable for UV light: yes
Fiber optic for attachment optics: no
Fiber optic with coaxial structure: no
Fiber optic with linear light beam: no
eClass 7.0: 27270905
eClass 7.1: 27270905
eClass 8.0: 27270905
eClass 9.0: 27270905
eClass 9.1: 27270905
ETIM-6.0: EC002651
ETIM-7.0: EC002651
IPF Product Group: 154
shipping weight: 0.04kg
packaging dimensions: 77.0mm x 25.0mm x 123.0mm
customs tariff number: 90011090
Zolltarifnummer: 90011090
