Product
IPF
LS500916
Request a Quote
Image copyright: IPF

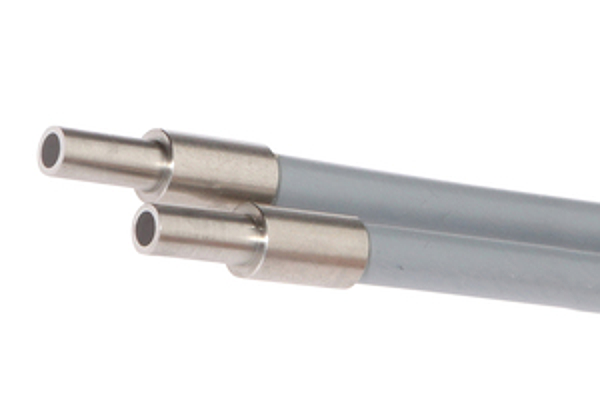

IPF LS500916
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Version: | Through-beam sensors |
| Fiber diameter: | 6.7mm |
| Number of fibers: | 2 |
| Fiber optics core material: | Glass |
| End piece length: | 15mm |
| Fiber optic with small bending radius: | no |
| Bending radius (fixed): | 25mm |
| Sensing head material: | Stainless steel |
| Overall length: | 5000mm |
| Design: | Cylinder plain |
| Ambient temperature: | -40 - 180°C |
| Sheathing material: | Silicone |
| Sensing head diameter: | 6mm |
| Bendable: | no |
| Fiber optic with bendable head: | no |
| Bending radius (flexible): | 50mm |
| Sensing head diameter 1: | 6 |
| Short-circuit protection: | no |
| Sensing head length: | 29mm |
| Light exit: | Axial |
| Reverse polarity protection: | no |
| Bending angle of the sensing head: | 0° |
| Bending section of the sensing head: | 0mm |
| Fiber optic for attachment optics: | no |
| Fiber optic with coaxial structure: | no |
| Fiber optic with linear light beam: | no |
| eClass 7.0: | 27270905 |
| eClass 7.1: | 27270905 |
| eClass 8.0: | 27270905 |
| eClass 9.0: | 27270905 |
| eClass 9.1: | 27270905 |
| ETIM-6.0: | EC002651 |
| ETIM-7.0: | EC002651 |
| IPF Product Group: | 150 |
| packaging dimensions: | 250mm x 0.0mm x 350mm |
| customs tariff number: | 90011090 |
| Zolltarifnummer: | 90011090 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
